Mudstuck 9500lb Compact Winch – Power That Fits Where Others Can’t

Compact size. Full-size pulling power.

The Mudstuck 9500lb Compact Winch delivers serious strength in a more compact body, making it perfect for vehicles with tighter winch mounting spaces. After two years of development and real-world testing with Green Motorsports, this winch has proven its mettle in New Zealand’s toughest off-road conditions.

Ideal for those needing power without bulk, this winch won’t let you down when it’s time to haul, recover or load up.

Ideal for:

• 4WDs, utes, and trucks with limited mounting space

• Recovery jobs in rugged NZ terrain

• Off-road builds, trailers, and general lifting

• Anyone who needs serious performance in a smaller package

Key Features:

• Compact drum and body for tighter installs

• IP67 rated – dust and water resistant

• 12V 5.2hp motor with powerful pull

• Turn clutch for fast winching control

• Tried and tested in NZ conditions

• Includes Dyneema rope and both remote options

Technical Specs:

• Rated pull: 9,500lbs / 4,309kg (single line)

• Motor: 12V permanent magnet, 5.2hp

• Gearbox: NGWN planetary gear, 216:1 reduction

• Drum size: 64mm x 134mm

• Battery leads: 1.83m

• Rope: 16m of 9.1mm Dyneema (rated to 7,341kg)

• Line speed: 10.8m/min

• Amp draw under load: 350A

• Winch weight: 23kg

• Mounting measurements: 165mm x 114mm

• Overall dimensions: 432mm x 162mm x 170mm

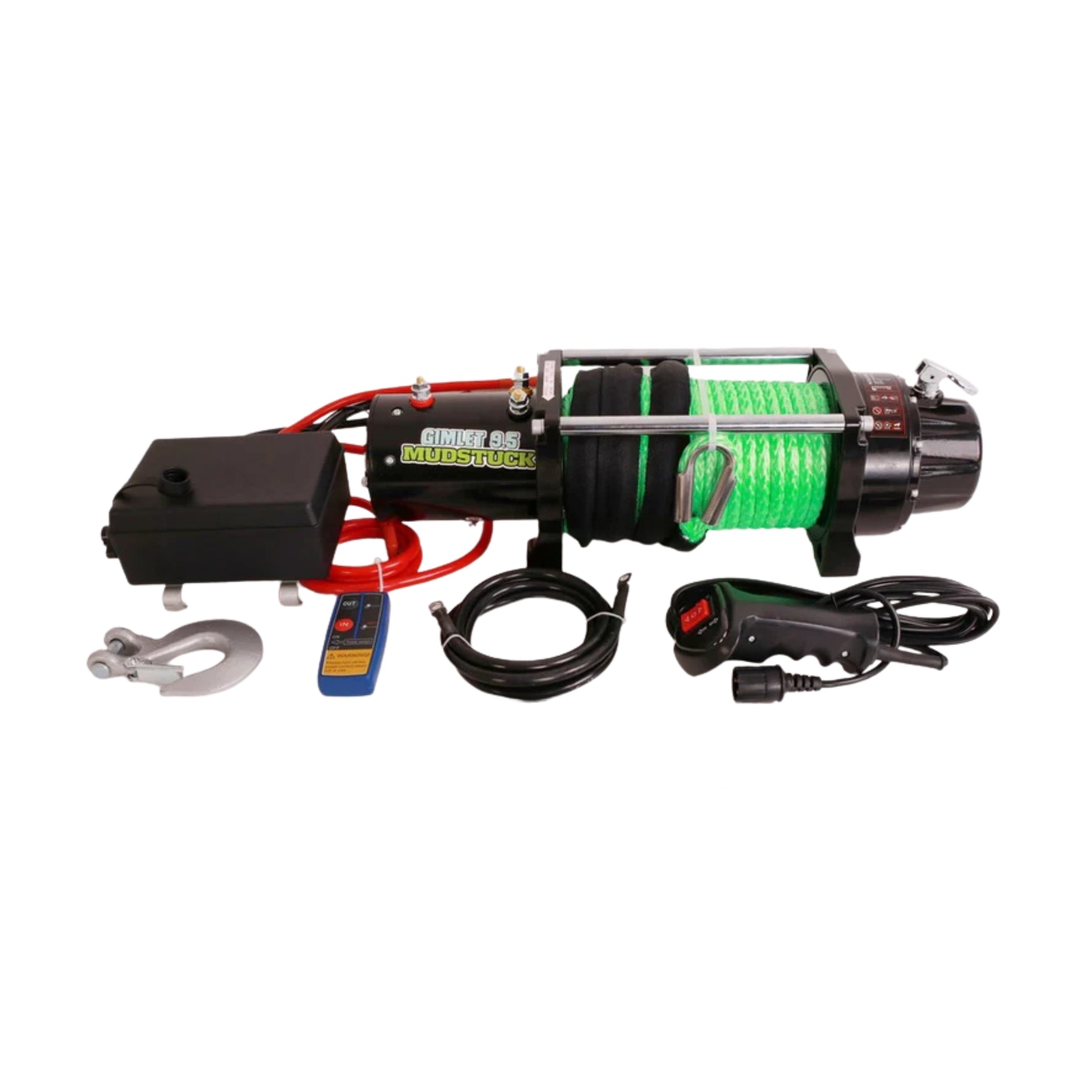

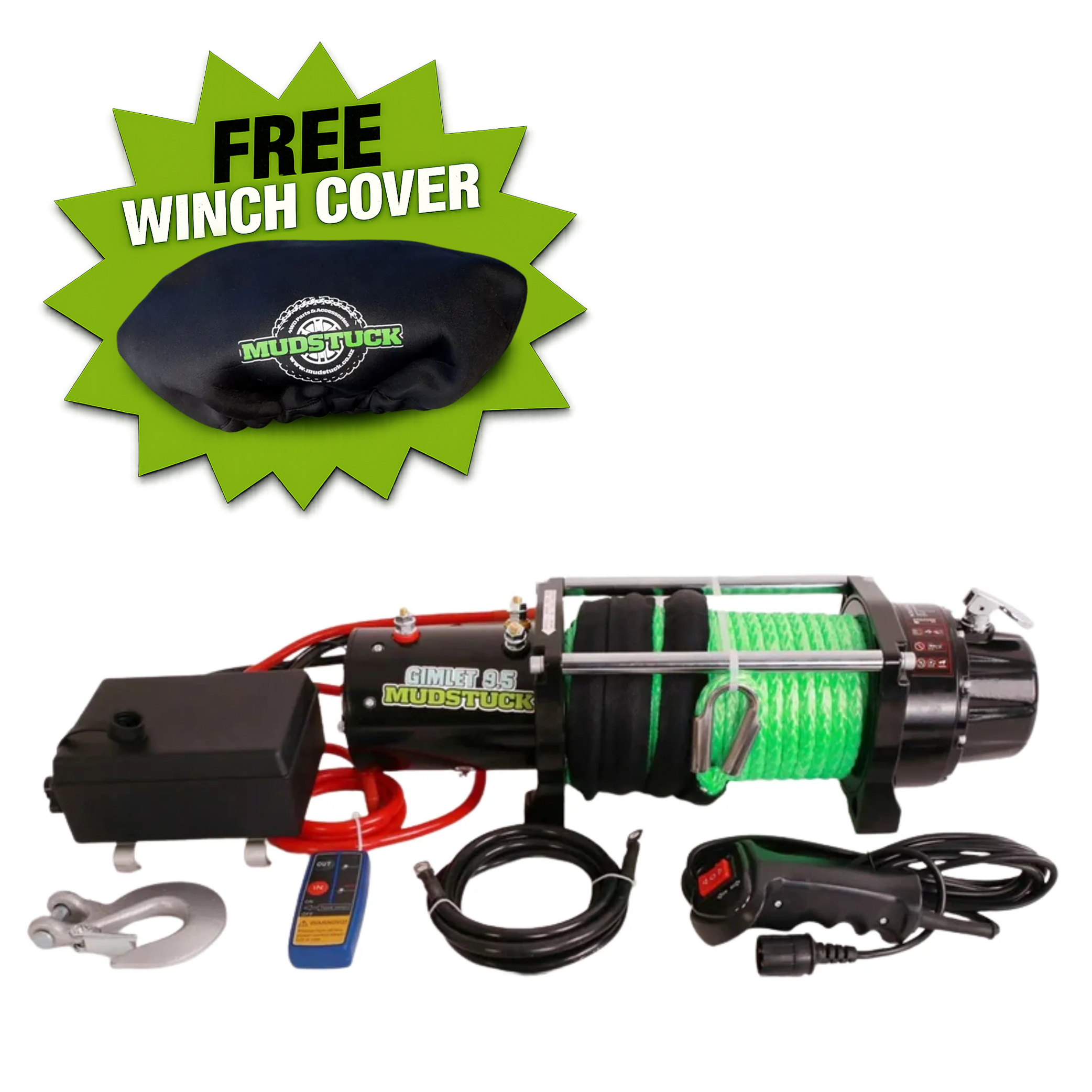

In the Box:

• Mudstuck 9500lb Compact Winch

• Fairlead

• Wired Remote

• Wireless Remote

• Dyneema Rope (16m)

NOTE: Our winches come fitted with Dyneema rope, which requires the hawse fairlead shown in the photos — not the roller fairlead pictured on some manuals. Rollers are designed for steel cables.
