Mudstuck 3500lb Winch – Proven Performance You Can Rely On

Tough. Reliable. Ready when you need it.

After years of proven performance in New Zealand's harshest conditions, the Mudstuck 3500lb winch continues to be a favourite for off-roaders, trailer operators, and anyone who needs serious pulling power.

Originally developed over two years and tested extensively by Green Motorsports, this winch has earned its place as a trusted tool in any recovery kit. Whether you're pulling your 4x4 out of a bog, recovering your mate’s rig, or loading a vehicle onto a trailer — this compact powerhouse gets the job done.

Don’t settle for cheap imitations. Look for the Green, and trust in a winch that’s been tried, tested and trusted in Aotearoa.

Ideal for:

• Front or rear mounting on 4x4 vehicles

• Boat trailers and car trailers

• ATV/UTV and quad bikes

• General recovery and lifting tasks

Key Features:

• IP67 rated – protected from dust and water

• Compact and lightweight design (8.8kg)

• Turn clutch for easy operation

• Includes both wired and wireless remotes

• Built-in safety and performance tested in NZ

Technical Specs:

• Rated pull: 3,500lbs / 1,587kg (single line)

• Motor: 12V permanent magnet, 1.5hp

• Gearbox: NGWN planetary gear with 153:1 reduction

• Drum size: 38mm x 72mm

• Battery leads: 1.7m

• Rope: 13m of 4.8mm Dyneema (rated to 2,039kg)

• Line speed: 3.3m/min

• Amp draw under load: 148A

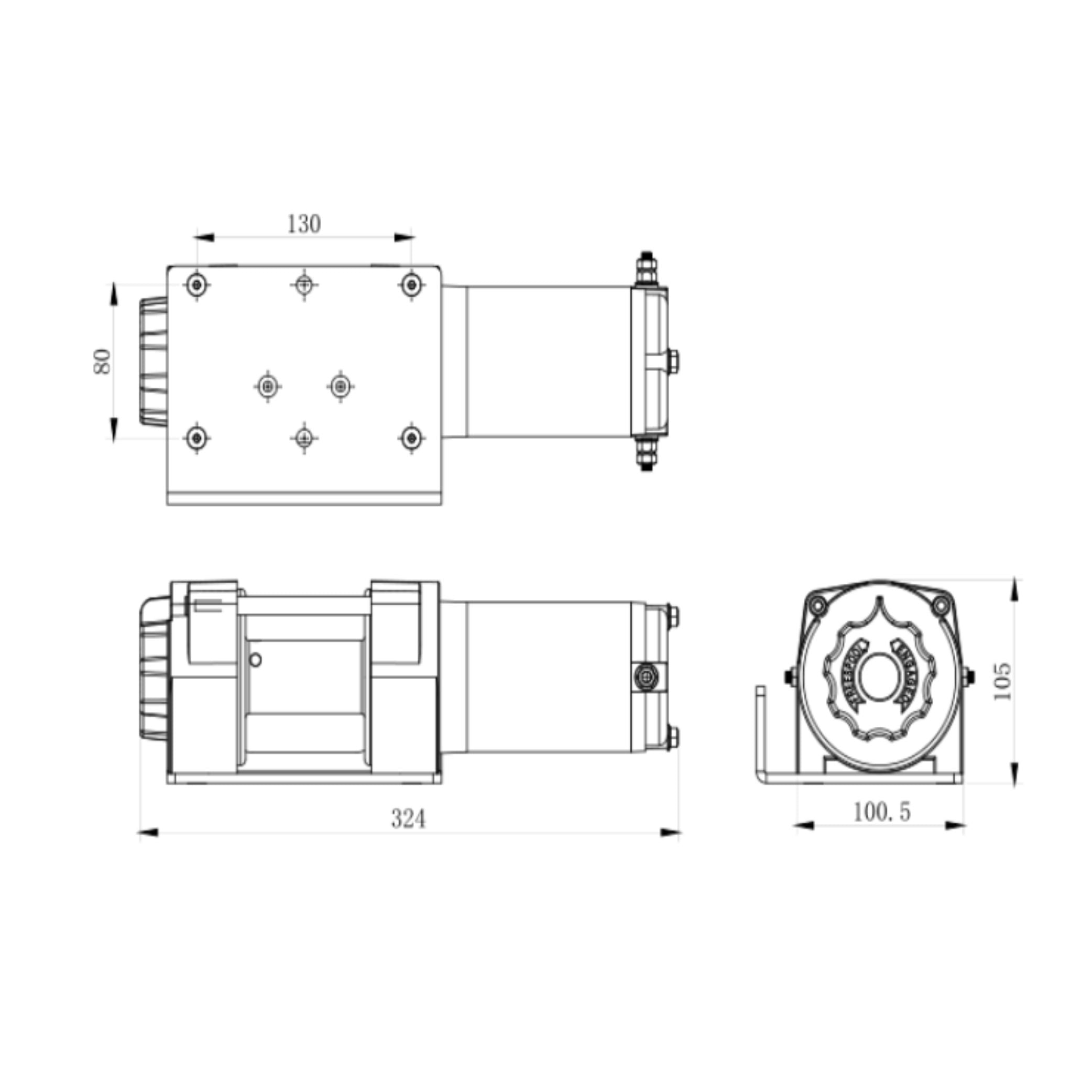

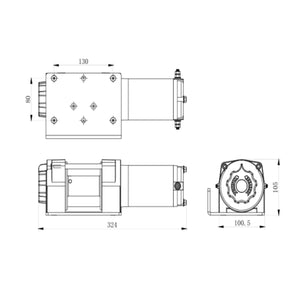

• Mounting measurements: 130mm x 80mm

• Overall dimensions: 325mm x 105mm x 105mm

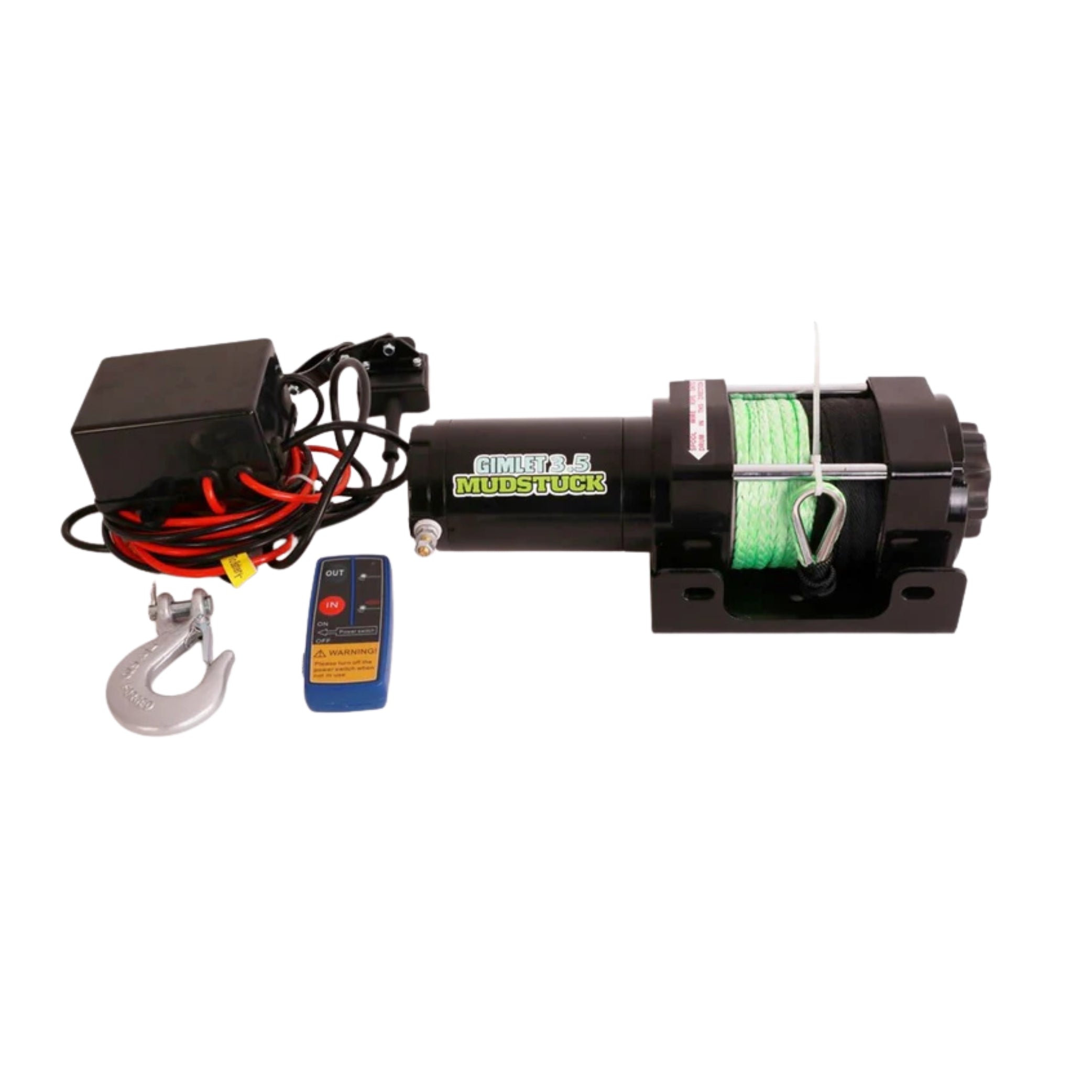

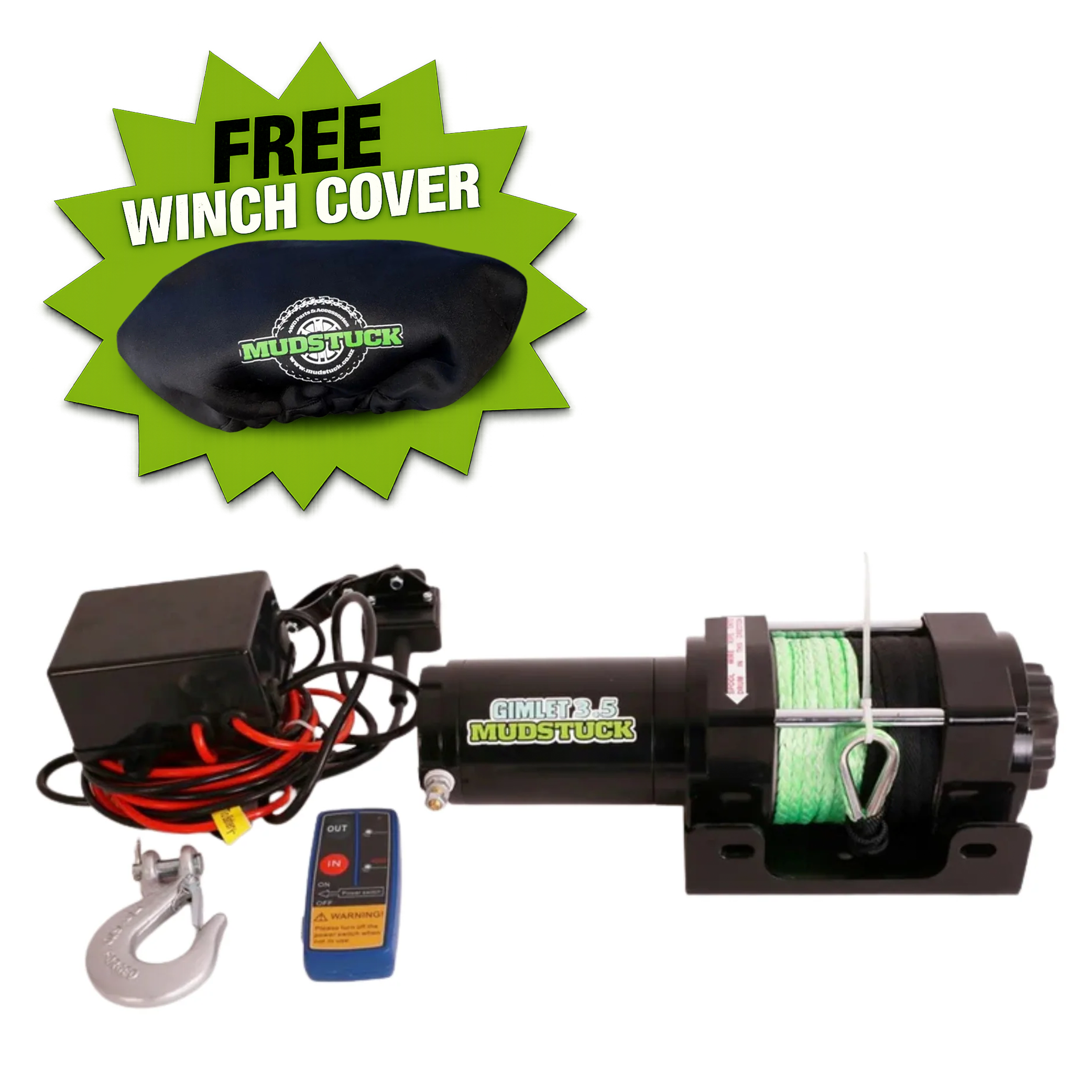

In the Box:

• Mudstuck 3500lb Winch

• Fairlead

• Wired Remote

• Wireless Remote

• Dyneema Rope (13m)

NOTE: Our winches come fitted with Dyneema rope, which requires the hawse fairlead shown in the photos — not the roller fairlead pictured on some manuals. Rollers are designed for steel cables.
