Mudstuck 12000lb 24V Winch – Extra Voltage, Extra Muscle

More power. Same trusted toughness.

The Mudstuck 12000lb 24V winch is built for serious users who need consistent pulling performance and reliability under load. Developed over two years and tested for 12 months in New Zealand's harshest conditions by Green Motorsports, this winch has earned its reputation as a workhorse in the field.

If your setup runs a 24V system and you're regularly tackling tough recoveries, this is the winch to get. It’s made for those who don’t mess around.

Ideal for:

• 24V commercial and off-road vehicles

• Heavy-duty 4x4 trucks and utes

• Trailers, recovery vehicles, and serious work use

• Demanding recovery environments

Key Features:

• IP67 rated – resistant to dust and water

• 24V power for more efficient, reliable pulls

• 5.2hp permanent magnet motor

• Turn clutch for fast engagement

• Field-tested in NZ for performance and durability

• Dyneema rope included for strength and safety

Technical Specs:

• Rated pull: 12,000lbs / 5,443kg (single line)

• Motor: 24V permanent magnet, 5.2hp

• Gearbox: NGWN planetary gear, 216:1 reduction

• Drum size: 64mm x 224mm

• Battery leads: 1.83m

• Rope: 27m of 9.5mm Dyneema (rated to 7,647kg)

• Line speed: 10.8m/min

• Amp draw under load: 360A

• Winch weight: 28kg

• Overall dimensions: 535mm x 162mm x 170mm

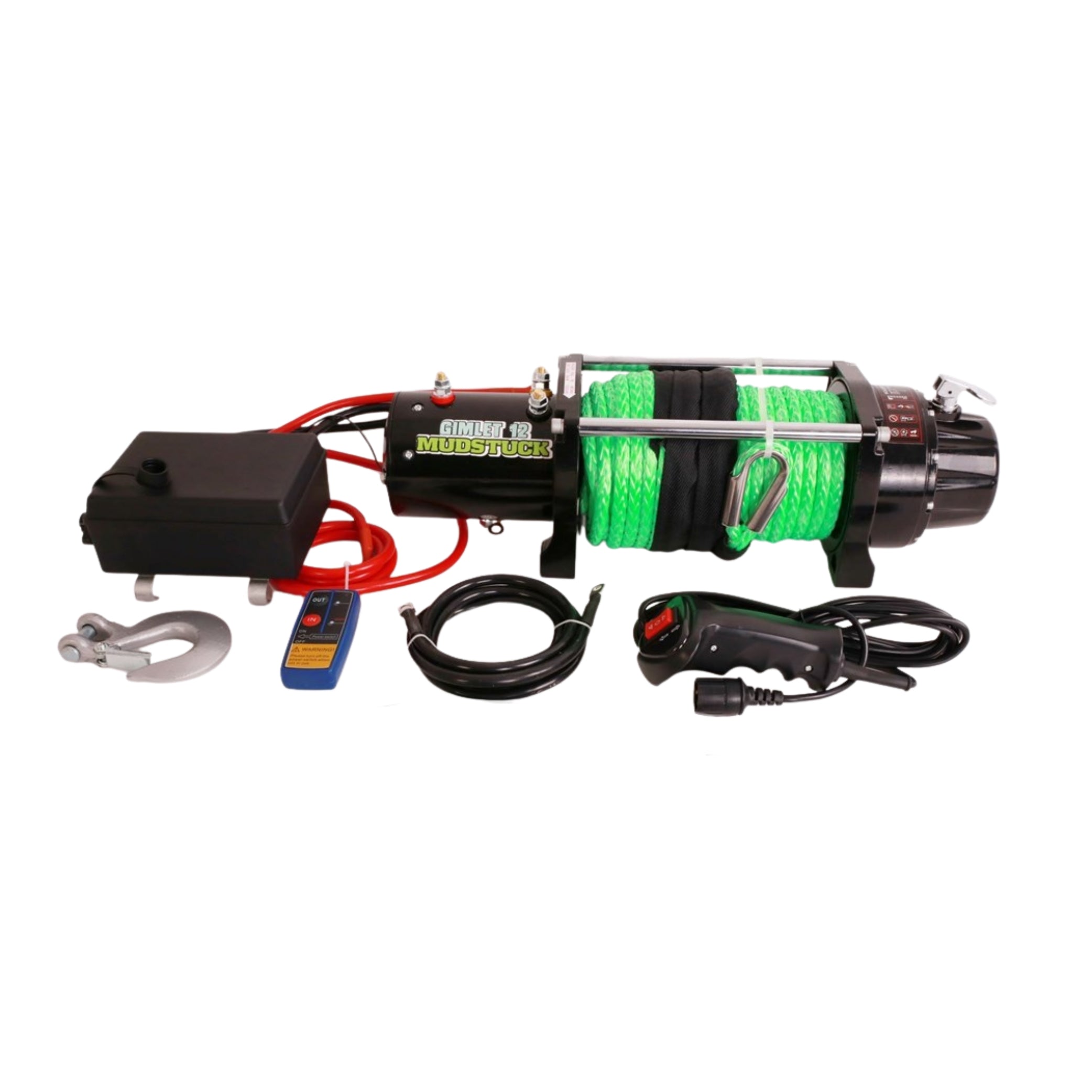

In the Box:

• Mudstuck 12000lb 24V Winch

• Fairlead

• Wired Remote

• Wireless Remote

• Dyneema Rope (27m)

NOTE: Our winches come fitted with Dyneema rope, which requires the hawse fairlead shown in the photos — not the roller fairlead pictured on some manuals. Rollers are designed for steel cables.
