Mudstuck 12000lb Winch – Built for Bigger Jobs and Harder Pulls

When you need maximum pulling power — trust the Green.

Designed for serious recovery work, the Mudstuck 12000lb winch is the top choice for heavy-duty 4x4 builds, trailers, and work vehicles. Developed over two years and battle-tested for 12 months by Green Motorsports in tough New Zealand terrain, this winch delivers strength, speed, and reliability when it matters most.

From recovering loaded trucks to hauling vehicles onto trailers, this is the muscle you want on your bumper. Trusted by off-roaders and tradies alike — don’t settle for less.

Ideal for:

• Heavy-duty 4x4s, utes, trucks, and off-road rigs

• Worksite or commercial recovery vehicles

• Trailer-mounted lifting or winching tasks

• Serious off-road recovery situations

Key Features:

• IP67 rated for dust and water resistance

• Powerful 12V 5.2hp motor

• Includes both wired and wireless remotes

• Turn clutch for fast, easy control

• NZ-tested, proven performance

• Fitted with strong 27m Dyneema rope

Technical Specs:

• Rated pull: 12,000lbs / 5,443kg (single line)

• Motor: 12V permanent magnet, 5.2hp

• Gearbox: NGWN planetary gear, 216:1 reduction

• Drum size: 64mm x 224mm

• Battery leads: 1.83m

• Rope: 27m of 9.5mm Dyneema (rated to 7,647kg)

• Line speed: 10.8m/min

• Amp draw under load: 360A

• Winch weight: 28kg

• Overall dimensions: 535mm x 162mm x 170mm

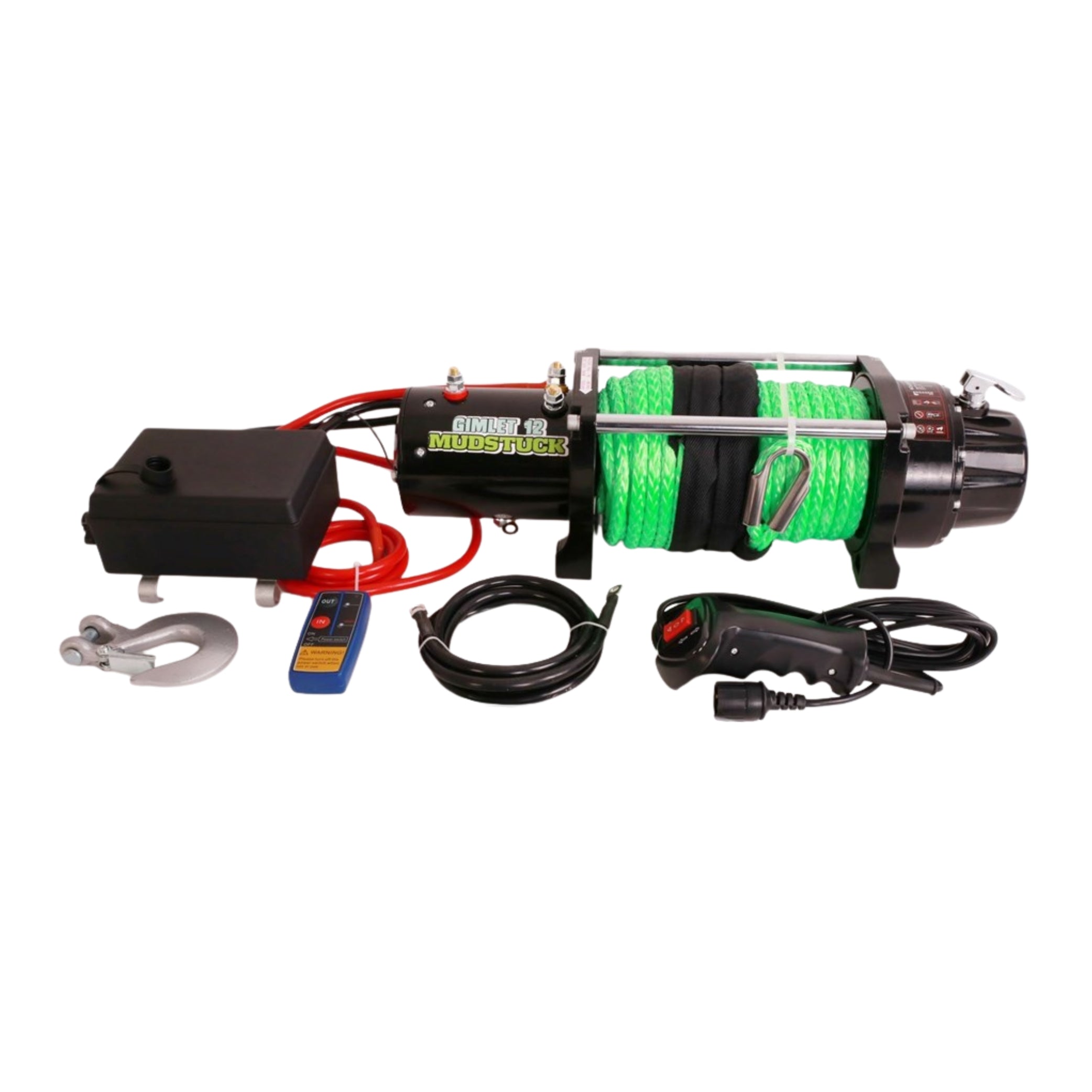

In the Box:

• Mudstuck 12000lb Winch

• Fairlead

• Wired Remote

• Wireless Remote

• Dyneema Rope (27m)

NOTE: Our winches come fitted with Dyneema rope, which requires the hawse fairlead shown in the photos — not the roller fairlead pictured on some manuals. Rollers are designed for steel cables.
