Link ECU TCC06 6 Channel EGT to CAN Module
*NOTE* This product is Order in and typically takes around a 4-5 working days to get in to stock
Link TCC06 6 Channel EGT to CAN module, powered by CANchecked
The TCC06 EGT to CAN module allows you to connect up to six Type-K thermocouples and send the values via CAN bus and/or monitor them directly on your wireless enabled device.
Type-K thermocouples are suitable for various applications such as measuring exhaust gas temperature (EGT), temperatures before/after the intercooler, turbo housings, cylinder head temperatures, water temperature, oil temperature and more. All measurements are cold junction compensated with a measuring range of 0 to 1250°C in 0.25°C resolution (14bit).
The TCC06 feature a four-pin DTM connector for CAN & power that is pin compatible with Links standard CAN pinout and CAN cables range. CAN 2.0A/B standard is supported with flexible configuration.
Wireless connectivity allows you to configure and update your module via smartphone or PC and query the current temperature and thermocouple status.
Features:
- 6 x cold junction compensated type-K inputs
- CAN Bus connection to ECU (Pre-Configured for Link ECU)
- Measuring range from 0 to 1250°C (32 to 2282°F) with 0.25°C resolution
- Detection of short circuit to ground or if no type-K is connected
- Standard mini k thermocouple connector
- Full configuration and monitoring over wireless
- Adjustable sample frequency up to 100Hz

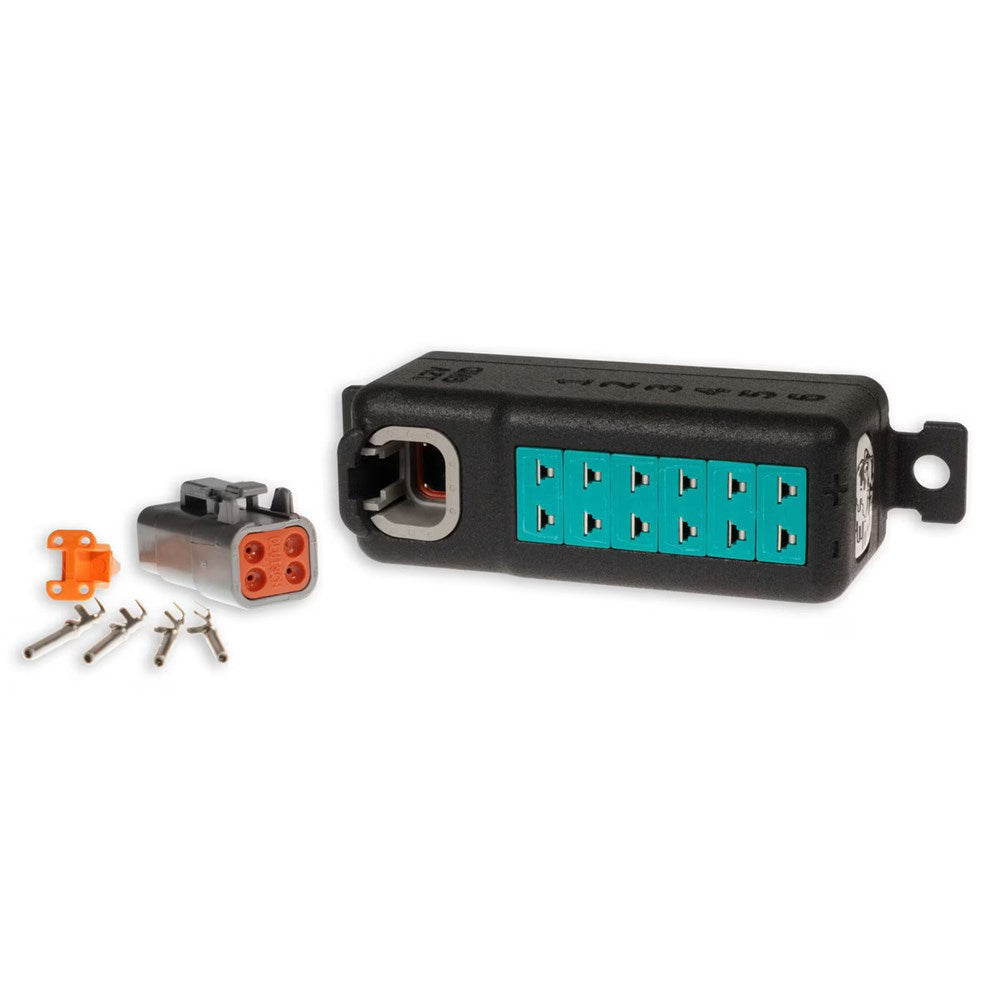

Box Contents:
1 x CAN EGT Module
1 x DTM4 Mating Connector Kit
2 x Link Stickers
Description
Link ECU TCC06 6 Channel EGT to CAN Module
*NOTE* This product is Order in and typically takes around a 4-5 working days to get in to stock
Link TCC06 6 Channel EGT to CAN module, powered by CANchecked
The TCC06 EGT to CAN module allows you to connect up to six Type-K thermocouples and send the values via CAN bus and/or monitor them directly on your wireless enabled device.
Type-K thermocouples are suitable for various applications such as measuring exhaust gas temperature (EGT), temperatures before/after the intercooler, turbo housings, cylinder head temperatures, water temperature, oil temperature and more. All measurements are cold junction compensated with a measuring range of 0 to 1250°C in 0.25°C resolution (14bit).
The TCC06 feature a four-pin DTM connector for CAN & power that is pin compatible with Links standard CAN pinout and CAN cables range. CAN 2.0A/B standard is supported with flexible configuration.
Wireless connectivity allows you to configure and update your module via smartphone or PC and query the current temperature and thermocouple status.
Features:
- 6 x cold junction compensated type-K inputs
- CAN Bus connection to ECU (Pre-Configured for Link ECU)
- Measuring range from 0 to 1250°C (32 to 2282°F) with 0.25°C resolution
- Detection of short circuit to ground or if no type-K is connected
- Standard mini k thermocouple connector
- Full configuration and monitoring over wireless
- Adjustable sample frequency up to 100Hz
Box Contents:
1 x CAN EGT Module
1 x DTM4 Mating Connector Kit
2 x Link Stickers
Link ECU TCC06 6 Channel EGT to CAN Module
- Regular price
- $512.00
- Sale price
- $512.00
- Regular price
-
Tax included.
