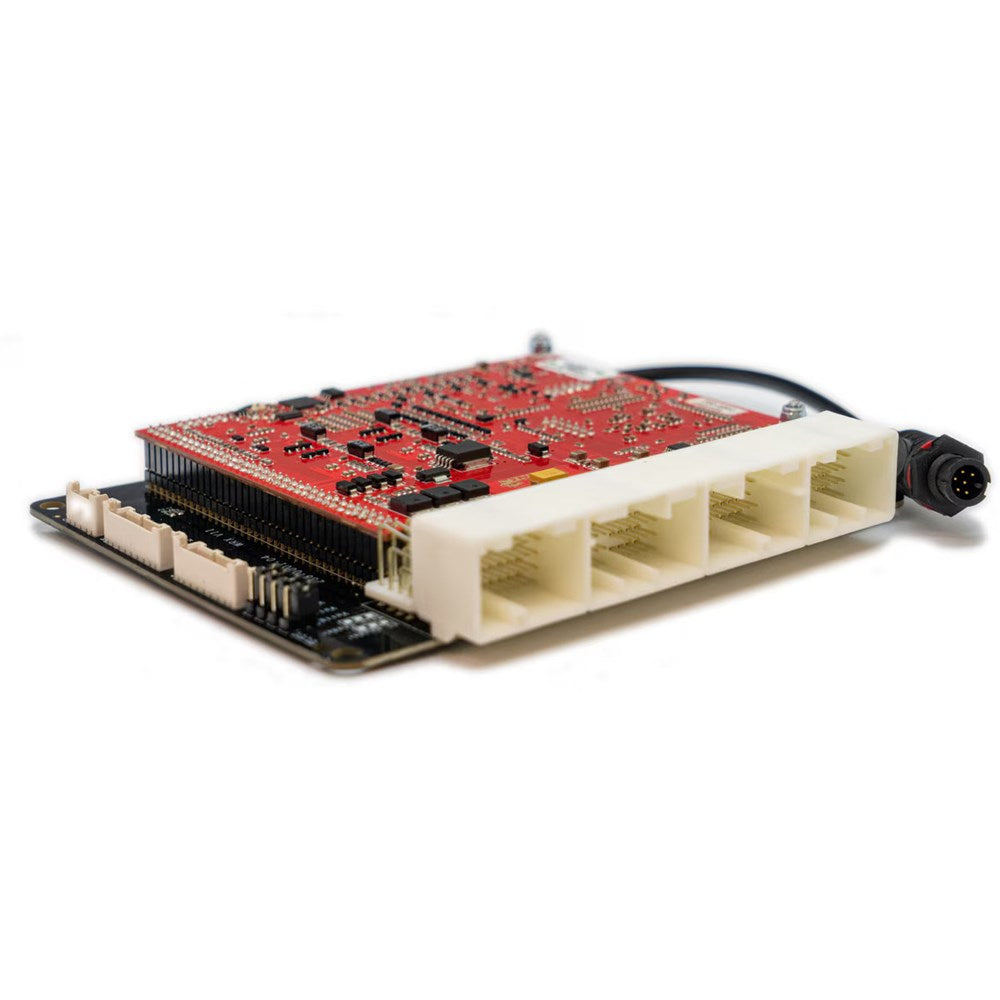

Link ECU Subaru WRXLink V11 - WRX11X Plug in
*NOTE* This product is Order in and typically takes around a 4-5 working days to get in to stock
G4X PlugIn ECUs offer the latest in engine management technology, designed to easily maximize the potential from your car.
This ECU fits inside the factory OEM enclosure. Installation of processing unit is a breeze, with no alteration of the factory wiring loom required for the models listed below.
Due to the amount of variation on this vehicle, please ensure you read the Configuration - Memo Text in PCLink.
This product supports the following models:
- 2007-2014 WRX and WRX STI with GR/GV/GH/GE chassis codes, for JDM/AUDM/SADM/EURO markets, with turbocharged EJ20 or EJ25 engines.
- 2008-2010 USDM models which have the common international Denso ECU Pinout**
- 2015-2021 WRX STI with VAB/VAF chassis codes, for JDM/AUDM/SADM/EURO markets, with turbocharged EJ20 or EJ25 engines
**Note: Refer to the supported models document below for more detail. 2011 and later USDM models are supported by our WRX11 USDM ECU
Take a look at our supported models list to find out which models are supported and which are not. Alternatively, contact your LinkECU Reseller or our 24/6 Tech Support Team.
Important Notes
- Please check your connector matches the header in the listed photo before purchasing.
- This ECU works for manual transmissions only.
- Air temp sensor highly recommended.
- Most factory features are supported including DCCD, hill start assist, SI drive, cruise control, cam control & ABS supported.
- Check the features tab for I/O input & output expansion options.
- The security/immobiliser lamp may remain illuminated in some models
Note: This Plug-in features a new 4 pin powered CAN connector and cannot use the old CANPCB cable for CAN connection. Use the CANJST4 (Link PN 101-0198) cable for connecting CAN devices. This new 4 pin port and cable provide not only the CAN connection, but also a protected 12V power supply and ground for powering the CAN devices. The power supply is protected by a self-resetting fuse rated at 3A continuous.
G4X PlugIn Key Features (where applicable):
Up to 6D fuel and ignition mapping
Precision closed loop cam control (four cam, independent control)
Sequential fuel delivery
Digital triggering, all OEM patterns
OEM idle hardware supported
5D boost control with three switchable tables
Motorsport features - antilag, launch, flat shift
Continuous barometric correction (on board)
CAN port
QuickTune - automated fuel tuning
Individual cylinder correction
USB tuning cable included
Stats recording into on-board memory
Gear compensations for spark, boost and fuel
Real time selectable dual fuel, ignition and boost maps
Sync and crank sensors can be a combination of Hall effect, variable reluctance or optical
Boost control referenced to gear, speed or throttle position
512 mega bytes data logging memory within storage unit
Staged injection
Knock with "windowing"
I/O Options:
The following expansion connector inputs/outputs are provided:
Expansion connector 1
Pin 1 Aux 16
Pin 2 DI 11
Pin 3 An Temp 4
Pin 4 Knock 2
Pin 5 Injector 6
Description
Link ECU Subaru WRXLink V11 - WRX11X Plug in
*NOTE* This product is Order in and typically takes around a 4-5 working days to get in to stock
G4X PlugIn ECUs offer the latest in engine management technology, designed to easily maximize the potential from your car.
This ECU fits inside the factory OEM enclosure. Installation of processing unit is a breeze, with no alteration of the factory wiring loom required for the models listed below.
Due to the amount of variation on this vehicle, please ensure you read the Configuration - Memo Text in PCLink.
This product supports the following models:
- 2007-2014 WRX and WRX STI with GR/GV/GH/GE chassis codes, for JDM/AUDM/SADM/EURO markets, with turbocharged EJ20 or EJ25 engines.
- 2008-2010 USDM models which have the common international Denso ECU Pinout**
- 2015-2021 WRX STI with VAB/VAF chassis codes, for JDM/AUDM/SADM/EURO markets, with turbocharged EJ20 or EJ25 engines
**Note: Refer to the supported models document below for more detail. 2011 and later USDM models are supported by our WRX11 USDM ECU
Take a look at our supported models list to find out which models are supported and which are not. Alternatively, contact your LinkECU Reseller or our 24/6 Tech Support Team.
Important Notes
- Please check your connector matches the header in the listed photo before purchasing.
- This ECU works for manual transmissions only.
- Air temp sensor highly recommended.
- Most factory features are supported including DCCD, hill start assist, SI drive, cruise control, cam control & ABS supported.
- Check the features tab for I/O input & output expansion options.
- The security/immobiliser lamp may remain illuminated in some models
Note: This Plug-in features a new 4 pin powered CAN connector and cannot use the old CANPCB cable for CAN connection. Use the CANJST4 (Link PN 101-0198) cable for connecting CAN devices. This new 4 pin port and cable provide not only the CAN connection, but also a protected 12V power supply and ground for powering the CAN devices. The power supply is protected by a self-resetting fuse rated at 3A continuous.
G4X PlugIn Key Features (where applicable):
Up to 6D fuel and ignition mapping
Precision closed loop cam control (four cam, independent control)
Sequential fuel delivery
Digital triggering, all OEM patterns
OEM idle hardware supported
5D boost control with three switchable tables
Motorsport features - antilag, launch, flat shift
Continuous barometric correction (on board)
CAN port
QuickTune - automated fuel tuning
Individual cylinder correction
USB tuning cable included
Stats recording into on-board memory
Gear compensations for spark, boost and fuel
Real time selectable dual fuel, ignition and boost maps
Sync and crank sensors can be a combination of Hall effect, variable reluctance or optical
Boost control referenced to gear, speed or throttle position
512 mega bytes data logging memory within storage unit
Staged injection
Knock with "windowing"
I/O Options:
The following expansion connector inputs/outputs are provided:
Expansion connector 1
Pin 1 Aux 16
Pin 2 DI 11
Pin 3 An Temp 4
Pin 4 Knock 2
Pin 5 Injector 6
Link ECU Subaru WRXLink V11 - WRX11X Plug in (Order in)
- Regular price
- $2,984.24
- Sale price
- $2,984.24
- Regular price
-
Tax included.
Shipping calculated at checkout.
Translation missing: en.products.product.sku:SCR LNKWRX11X
Couldn't load pickup availability
Order in
