About
Description
Tilton’s 600-Series overhung-mount aluminum pedal assembly features traditional fixed-mount master cylinder and balance bar technology and provide excellent performance at competitive prices.
Features:
- Forged aluminum pedals are engineered for high rigidity and low weight.
- Adjustable pedal ratio (5.0:1 – 6.2:1) enable the brake pedal to be tuned to driver preference without having to change master cylinder bore size.
- Foot pads can be adjusted vertically, horizontally and in angle to suit individual driver preferences.
- Large diameter 7/16”-20 balance bar provides maximum rigidity. PTFE coated aluminum clevises for increased durability and reduced friction.
- Pedal pivots feature wave washers to reduce lateral pedal movement and oil impregnated bronze bushings decrease stiction.
- Lightweight aluminum frame features guide “ramps” to reduce balance bar tipping, decreasing friction and improving brake repeatability.
- Weighs 4.8 lbs (does not include master cylinders)
Warning: Not designed for use with ABS systems. See 800/850-Series Pedal Assemblies and 900-Series Pedal Assemblies.”
Description
Tilton’s 600-Series overhung-mount aluminum pedal assembly features traditional fixed-mount master cylinder and balance bar technology and provide excellent performance at competitive prices.
Features:
- Forged aluminum pedals are engineered for high rigidity and low weight.
- Adjustable pedal ratio (5.0:1 – 6.2:1) enable the brake pedal to be tuned to driver preference without having to change master cylinder bore size.
- Foot pads can be adjusted vertically, horizontally and in angle to suit individual driver preferences.
- Large diameter 7/16”-20 balance bar provides maximum rigidity. PTFE coated aluminum clevises for increased durability and reduced friction.
- Pedal pivots feature wave washers to reduce lateral pedal movement and oil impregnated bronze bushings decrease stiction.
- Lightweight aluminum frame features guide “ramps” to reduce balance bar tipping, decreasing friction and improving brake repeatability.
- Weighs 4.8 lbs (does not include master cylinders)
Warning: Not designed for use with ABS systems. See 800/850-Series Pedal Assemblies and 900-Series Pedal Assemblies.”

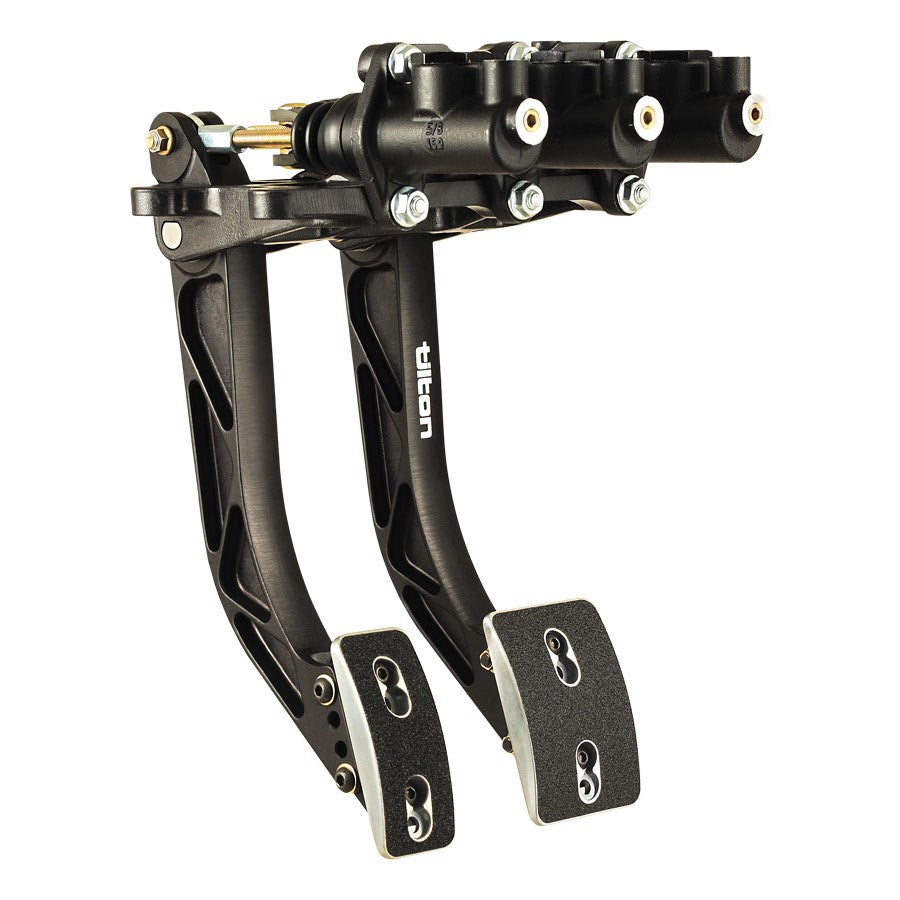

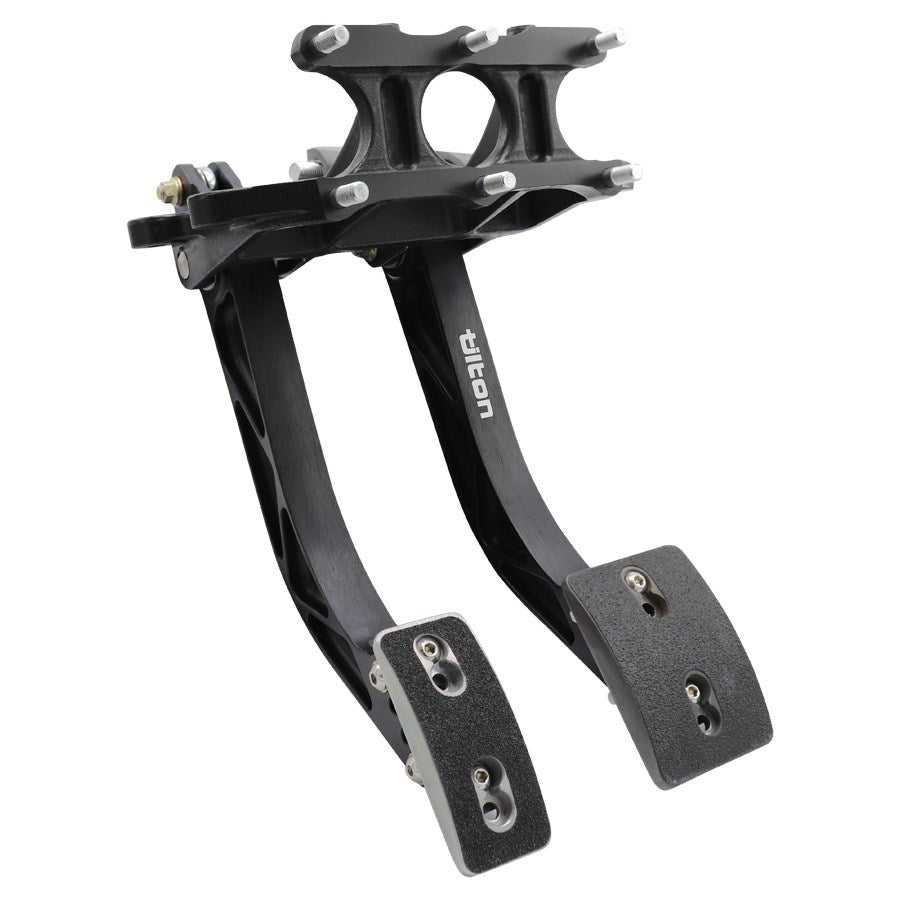

Tilton 600 Series Pedal Assembly Overhung
- Regular price
- $664.70
- Sale price
- $664.70
- Regular price
-
Tax included.
Shipping calculated at checkout.
Translation missing: en.products.product.sku:RCP TIL72-608
Couldn't load pickup availability
1 in Stock Now
