Turbo Rebuild Kit for Garrett T25 / T28 Dynamic (360 Degree)
*Note* There are two different types of compressor and seals used for T2, T25, and T28 turbos. Almost all T25 turbos which were made from 1990 and up are the dynamic seal type.
OE Number: 709143-0001

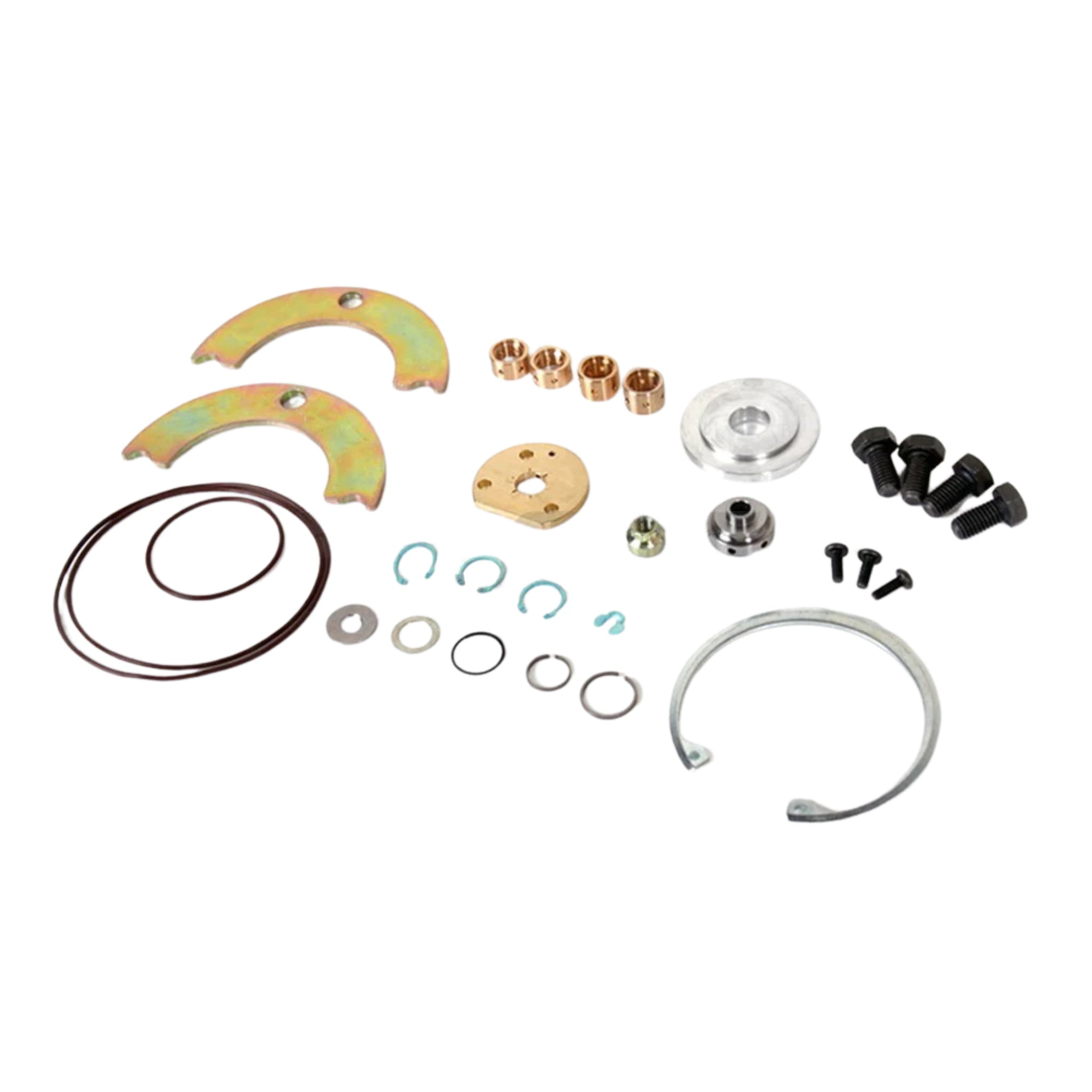

Kit Includes:
3x Bolt (T-Brg T-Torx Patched)
4x Bolt (B/Hsg-Turb/Hsg)
1x Spiral Snap Ring(Brg Retainer)
3x Snap Ring (C/Hsg-B/Hsg)
1x Snap Ring (Insert)
1x Actuator pin
1x Shaft Nut (M6x1.0P)
1x O-Ring (Seal Plate/41x1.78 VT)
1x O-Ring (T2 C/Cover 75mm)
1x O-Ring (B/Hsg-CC/82.27x1.78VT)
2x Clamp Plate (T/Hsg-S/Plate)
1x Thrust Collar (Thrust Flinger)
1x Insert(360 Degree)
2x Journal Bearing 13.8/9.23/9.37
2x Journal Bearing13.8 9.23 H7.67
1x Piston Ring(C)Φ12.7 T1.58
1x Piston Ring (Turb)Φ15.88
1x Thrust Bearing
1x Thrust Collar (Thrust Washer)
1x Washer
Description
Turbo Rebuild Kit for Garrett T25 / T28 Dynamic (360 Degree)
*Note* There are two different types of compressor and seals used for T2, T25, and T28 turbos. Almost all T25 turbos which were made from 1990 and up are the dynamic seal type.
OE Number: 709143-0001
Kit Includes:
3x Bolt (T-Brg T-Torx Patched)
4x Bolt (B/Hsg-Turb/Hsg)
1x Spiral Snap Ring(Brg Retainer)
3x Snap Ring (C/Hsg-B/Hsg)
1x Snap Ring (Insert)
1x Actuator pin
1x Shaft Nut (M6x1.0P)
1x O-Ring (Seal Plate/41x1.78 VT)
1x O-Ring (T2 C/Cover 75mm)
1x O-Ring (B/Hsg-CC/82.27x1.78VT)
2x Clamp Plate (T/Hsg-S/Plate)
1x Thrust Collar (Thrust Flinger)
1x Insert(360 Degree)
2x Journal Bearing 13.8/9.23/9.37
2x Journal Bearing13.8 9.23 H7.67
1x Piston Ring(C)Φ12.7 T1.58
1x Piston Ring (Turb)Φ15.88
1x Thrust Bearing
1x Thrust Collar (Thrust Washer)
1x Washer
Turbo Rebuild Kit for Garrett T25 / T28 Dynamic (360 Degree)
- Regular price
- $114.99
- Sale price
- $114.99
- Regular price
-
Tax included.
Shipping calculated at checkout.
Translation missing: en.products.product.sku:SCR TUR00198
Couldn't load pickup availability
1 in Stock Now
