About
*Note* This product is currently order in from the Parts shop max Taiwan Factory. Roughly takes 1-2 weeks if in stock with Taiwan. You can check stock worldwide on the PSM website https://store.partsshopmax.com/ . If Taiwan is out of stock we can order from USA which may increase the price due to shipping costs from the states

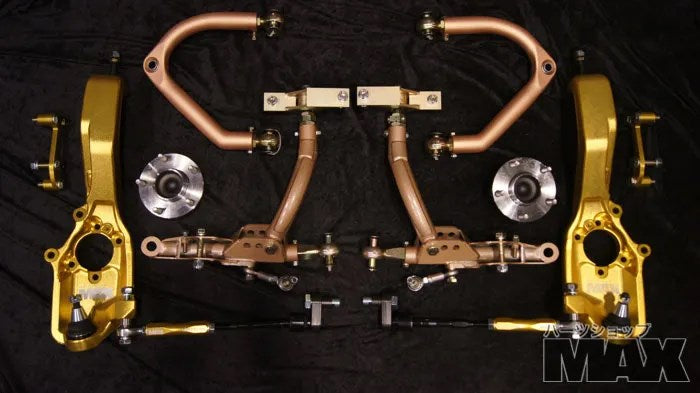

Listing is for:
1x Pair of Knuckles
1x Pair of lower control arms
1x Pair of Upper Control Arms
1x Pair of Inner Tie rods
1x Pair of Outer tie rods
1x Pair of Offset rack spacers
1x Pair of Ball joints
1x Pair of Moog Z33 Hubs
1x Pair of Akebono Brake Brackets
~ Forged aluminum CNC machined Super Angle Drop Knuckles with roll center/bump steer correction
~ Forged aluminum CNC machined adjustable front upper arms for extended track width ~ Adjustable front lower arms and compression rods adjust track width, camber and caster. Custom arm shape provides extra tire clearance at high angle.
~ Rack/inner tie rod offset spacers move tie rods FORWARD 45mm to offer a bolt on solution to reduce ackerman and correct steering overcentering at high angle without having to relocate the steering rack.
(steering rack relocation crossmember modification is available separately)
~ Offset rack spacers convert to Chromoly Z33 Inner tie rods and spherical bearing Outer Tie Rods included in the kit.
~ Spherical bearing adj. sway bar links allow use of stock front swaybar
~ Includes Moog Z33 Hubs and OEM style lower Ball Joints
~ Akebono Brake Brackets (base model Z34 calipers won't work. Must use Akebono Z34 brakes, Z33 brakes, or Z32 Brakes)
**Z34 is much different than Z33.
The full kit must be used together. The drop knuckle is needed to increase angle. The other parts are required to fit the drop knuckles.
**Z34 wheel speed sensors will not attach to these knuckles.
If you desire to have functioning wheel speed sensors, you will use Z33 sensors which bolt to the knuckles. Since the harness connectors are different, you can simply splice the Z33 sensor to the Z34 plug.
*Note* This product is currently order in from the Parts shop max Taiwan Factory. Roughly takes 1-2 weeks if in stock with Taiwan. You can check stock worldwide on the PSM website https://store.partsshopmax.com/ . If Taiwan is out of stock we can order from USA which may increase the price due to shipping costs from the states
Listing is for:
1x Pair of Knuckles
1x Pair of lower control arms
1x Pair of Upper Control Arms
1x Pair of Inner Tie rods
1x Pair of Outer tie rods
1x Pair of Offset rack spacers
1x Pair of Ball joints
1x Pair of Moog Z33 Hubs
1x Pair of Akebono Brake Brackets
~ Forged aluminum CNC machined Super Angle Drop Knuckles with roll center/bump steer correction
~ Forged aluminum CNC machined adjustable front upper arms for extended track width ~ Adjustable front lower arms and compression rods adjust track width, camber and caster. Custom arm shape provides extra tire clearance at high angle.
~ Rack/inner tie rod offset spacers move tie rods FORWARD 45mm to offer a bolt on solution to reduce ackerman and correct steering overcentering at high angle without having to relocate the steering rack.
(steering rack relocation crossmember modification is available separately)
~ Offset rack spacers convert to Chromoly Z33 Inner tie rods and spherical bearing Outer Tie Rods included in the kit.
~ Spherical bearing adj. sway bar links allow use of stock front swaybar
~ Includes Moog Z33 Hubs and OEM style lower Ball Joints
~ Akebono Brake Brackets (base model Z34 calipers won't work. Must use Akebono Z34 brakes, Z33 brakes, or Z32 Brakes)
**Z34 is much different than Z33.
The full kit must be used together. The drop knuckle is needed to increase angle. The other parts are required to fit the drop knuckles.
**Z34 wheel speed sensors will not attach to these knuckles.
If you desire to have functioning wheel speed sensors, you will use Z33 sensors which bolt to the knuckles. Since the harness connectors are different, you can simply splice the Z33 sensor to the Z34 plug.
PSM Z34 370Z & G37 Super Angle Kit (Order in)
- Regular price
- $6,233.81
- Sale price
- $6,233.81
- Regular price
-
Translation missing: en.products.product.sku:SCR PSM Z34SAK
