About
*Note* This product is currently order in from the Parts shop max Taiwan Factory. Roughly takes 1-2 weeks if in stock with Taiwan. You can check stock worldwide on the PSM website https://store.partsshopmax.com/ . If Taiwan is out of stock we can order from USA which may increase the price due to shipping costs from the states

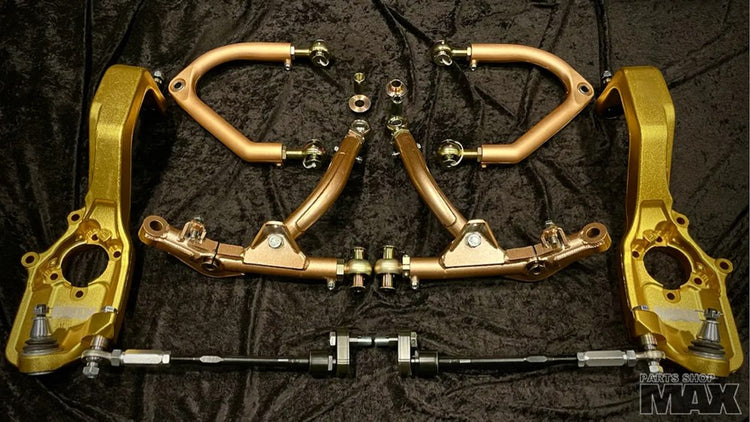

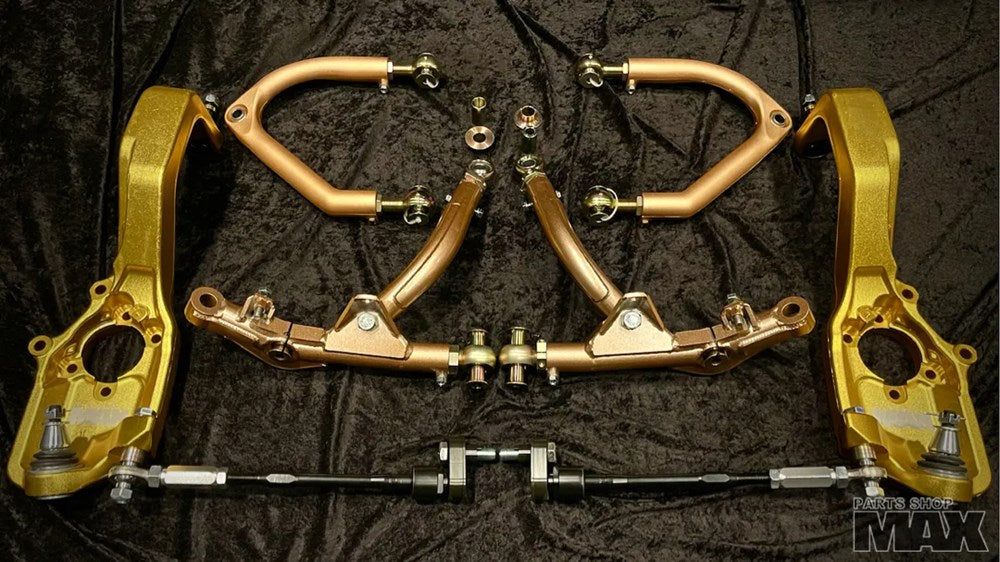

Listing is for:
1x Pair of Knuckles
1x Pair of lower control arms
1x Pair of Upper Control Arms
1x Pair of Inner Tie rods
1x Pair of Outer tie rods
1x Pair of Offset rack spacers
1x Pair of Ball joints
Although everything is also for sale separately, one click here will add everything you need to cart to set up the front end of your Z33 350Z or G35 for extreme steering angle & maximum strength components.
Includes adjustable lower control arms for full control over alignment, track width, clearance for tires at high angle.
Includes Forged aluminum, CNC machined front drop knuckles with 25mm roll center correction. Forged aluminum, CNC machined adjustable upper arms. Extended Chromoly inner tie rods with high misalignment outer tie rods.
Steering rack to tie rod forward offset spacers.
***INSTALL NOTES***For best results, pair this kit with our rack forward crossmember kit (sold separately).
This bolt on kit could require cutting of the inner tie rod outer thread depending on the state of track width adjusted into the front lower arm.
Tabs on the subframe need grinding to accept our high surface area front lower arm inboard joint high surface area bearing spacers.
Setup the caster arm joint to full misalignment, touching the housing at full droop when the car is on jacks so that the suspension compression travel will never bind that joint.
CONTENTS, Z33SAK front lower set less OEM knuckle brackets plus OTR
~ Z33SAKN FORGED knuckle with OEM style ball joint
~ ITR
~ Z33FUA less taper pin for OEM knuckle.
*Note* This product is currently order in from the Parts shop max Taiwan Factory. Roughly takes 1-2 weeks if in stock with Taiwan. You can check stock worldwide on the PSM website https://store.partsshopmax.com/ . If Taiwan is out of stock we can order from USA which may increase the price due to shipping costs from the states
Listing is for:
1x Pair of Knuckles
1x Pair of lower control arms
1x Pair of Upper Control Arms
1x Pair of Inner Tie rods
1x Pair of Outer tie rods
1x Pair of Offset rack spacers
1x Pair of Ball joints
Although everything is also for sale separately, one click here will add everything you need to cart to set up the front end of your Z33 350Z or G35 for extreme steering angle & maximum strength components.
Includes adjustable lower control arms for full control over alignment, track width, clearance for tires at high angle.
Includes Forged aluminum, CNC machined front drop knuckles with 25mm roll center correction. Forged aluminum, CNC machined adjustable upper arms. Extended Chromoly inner tie rods with high misalignment outer tie rods.
Steering rack to tie rod forward offset spacers.
***INSTALL NOTES***For best results, pair this kit with our rack forward crossmember kit (sold separately).
This bolt on kit could require cutting of the inner tie rod outer thread depending on the state of track width adjusted into the front lower arm.
Tabs on the subframe need grinding to accept our high surface area front lower arm inboard joint high surface area bearing spacers.
Setup the caster arm joint to full misalignment, touching the housing at full droop when the car is on jacks so that the suspension compression travel will never bind that joint.
CONTENTS, Z33SAK front lower set less OEM knuckle brackets plus OTR
~ Z33SAKN FORGED knuckle with OEM style ball joint
~ ITR
~ Z33FUA less taper pin for OEM knuckle.
PSM Z33 350Z & G35 Super Angle Kit, full set w/ forged knuckle & FUA + ITR (Order in)
- Regular price
- $4,449.99
- Sale price
- $4,449.99
- Regular price
-
Translation missing: en.products.product.sku:SCR PSM Z33SAKSET
