*Note* This product is currently order in from the Parts shop max Taiwan Factory. Roughly takes 1-2 weeks if in stock with Taiwan. You can check stock worldwide on the PSM website https://store.partsshopmax.com/ . If Taiwan is out of stock we can order from USA which may increase the price due to shipping costs from the states

Listing is for:

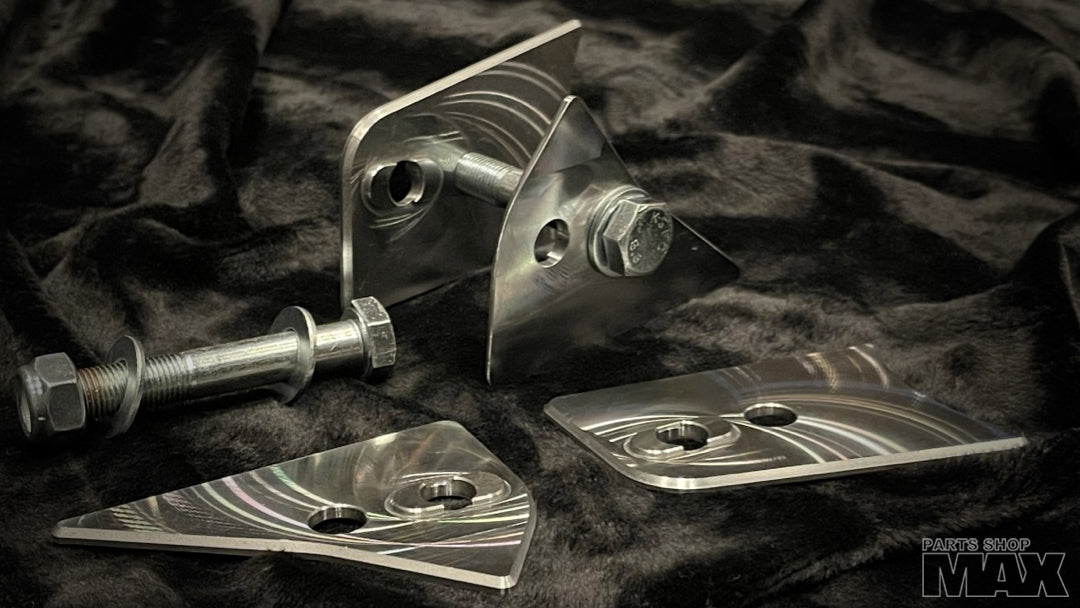

1x Set of lock out plates with hardware

For use with our very adjustable toe rod. This weld on plate set allows you to access a new pick up point that drastically cuts down on toe change during suspension compression and droop, especially when combined with the subframe risers.
Comes with hardware. Does not come with the toe rod or risers that compliment this part.

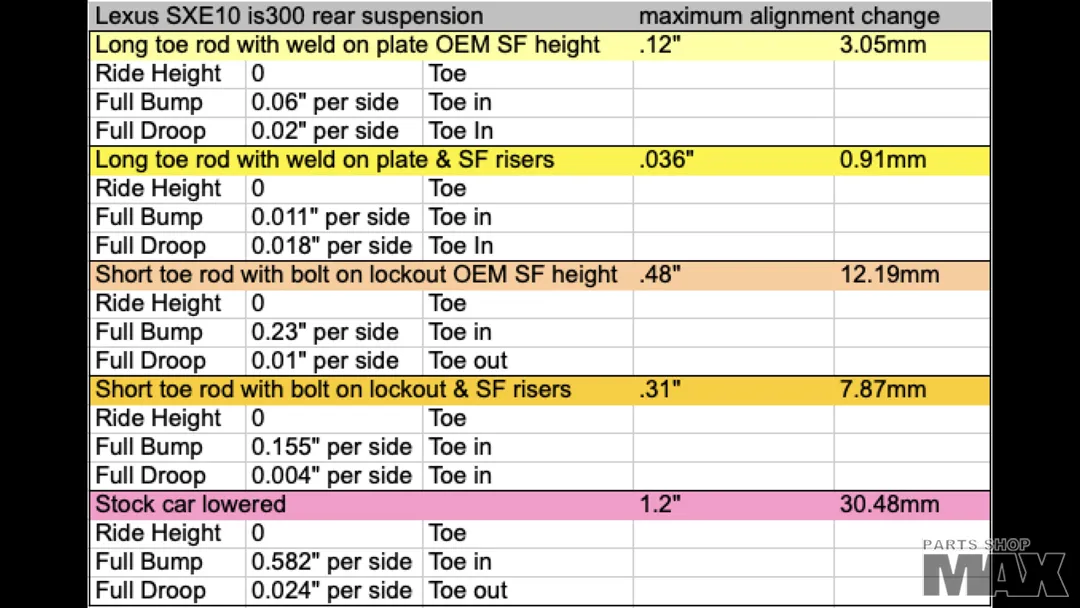

Check out the chart to see how much you can optimize towards zero toe change with different combinations.
If you have some other brand of adjustable toe rod, you will need be able to safely adjust it to at least 260mm or 10&1/4" on joint centers.
** Although the plates locate on their outside profile and inside the stock toe slot, Install requires eccentric bolt tab grinding, center punching using this plate's second hole as a guide then drilling of the new hole, welding of this plate set on the subframe and then paint to prevent rust.
Subframe must be remove from vehicle for this installation. It's all worth it to fix the one big problem with this chassis, toe change on suspension travel.
That frees you up to use a softer rear spring that provides more traction and travel without the uncontrolled alignment changes that plagued this car in the past. Check the instagram video that explains this with CAD screenshots at the hashtag #SXE10TOEWOP
