Scarles is the home of Parts shop max in NZ and Australia Check out the full range on their website https://store.partsshopmax.com/
Listing is for:
1x Pair of Inner tie rods
When running extended control arms, you need extended tie rods. These 298mm long tie rods are 27mm longer than OEM S14 inner tie rods. Good option for Z33 with extended control arms. Fits 1992-1993 FD RX7 with exteded control arms. This set is included in our FRS angle kit, but sold separately here. Great upgrade for S13 if you pair with S14 outer tie rods
~Strong CrMo construction with pillowball inner joints
~ 7mm built in rack spacers give more rack travel and noticable increase in steering angle
~ 7mm longer m16p1.0 rack threads guarantee proper thread engagement into the rack
~ 20mm longer threads on the tie rod end
~ Sold in pairs
~ We offer 3 inner tie rod lengths & the chart below lists all of the combinations. ~Note**Has less bearing travel than OEM tie rod(18 degrees vs. 28 center to max)due to double the shaft size for strength, so this should be combined with coilover suspension only. All lengths are in millimeters from end of rack to end of tie rod thread, or when our inner and outer are combined
~ rack to OTR joint center. When using RSPCR rack to inner tie rod forward offset spacer add 35mm.
Scarles is the home of Parts shop max in NZ and Australia Check out the full range on their website https://store.partsshopmax.com/
Listing is for:
1x Pair of Inner tie rods
When running extended control arms, you need extended tie rods. These 298mm long tie rods are 27mm longer than OEM S14 inner tie rods. Good option for Z33 with extended control arms. Fits 1992-1993 FD RX7 with exteded control arms. This set is included in our FRS angle kit, but sold separately here. Great upgrade for S13 if you pair with S14 outer tie rods
~Strong CrMo construction with pillowball inner joints
~ 7mm built in rack spacers give more rack travel and noticable increase in steering angle
~ 7mm longer m16p1.0 rack threads guarantee proper thread engagement into the rack
~ 20mm longer threads on the tie rod end
~ Sold in pairs
~ We offer 3 inner tie rod lengths & the chart below lists all of the combinations. ~Note**Has less bearing travel than OEM tie rod(18 degrees vs. 28 center to max)due to double the shaft size for strength, so this should be combined with coilover suspension only. All lengths are in millimeters from end of rack to end of tie rod thread, or when our inner and outer are combined
~ rack to OTR joint center. When using RSPCR rack to inner tie rod forward offset spacer add 35mm.

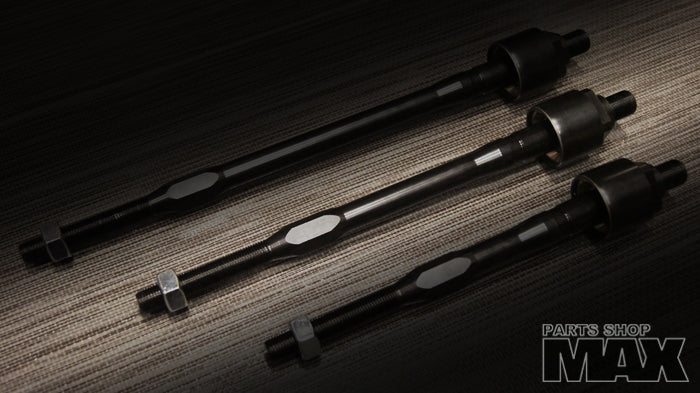

PSM MAX Extended Spherical Bearing CrMo inner tie rods for S14
- Regular price
- $225.32
- Sale price
- $225.32
- Regular price
-
Translation missing: en.products.product.sku:SCR PSM ITR
