Description
*Note* This product is currently order in from the Parts shop max Taiwan Factory. Roughly takes 1-2 weeks if in stock with Taiwan. You can check stock worldwide on the PSM website https://store.partsshopmax.com/ . If Taiwan is out of stock we can order from USA which may increase the price due to shipping costs from the states
Listing is for:
1x Pair of Lower control arms
New for 2024! E46 billet style front lower arms. 44mm wider than an OEM arm, per side.
Details
1️: Precision ground pin for caster adjuster. Any play there is magnified at the wheel so it’s uncoated. Use rust inhibitor on raw steel.
2️: That pin has a one piece shoulder for anti-shear & anti-separation of weld from the critical area during a crash.
3️: Laser cut steel plate absorbs crash energy well as proven in testing. CNC machined for weight reduction like billet with less cost.
4️: Inboard CrMo taper-pin / joint housing is 1pc. & triangulates the load to the subframe. We provide a rivet-nut & riv-nut tool for E46 crossmembers that lack threads.
5️: Bearings are maintenance free with PTFE liners and are serviceable with our lock ring tool and loctite green bearing mount compound.
6️: The retained all metal locknut lets you drop the arm with one tool.
7️: The included sway bar link has an array of stroke adjustment holes that matches our responsive super angle clearance swaybar.
8️: Billet angle stop structure is tuned with our E36 style knuckle to prevent bump-stop-steer when your suspension moves while at full lock. Spacers with a variety of width are provided to protect against bent threads on the custom domed hex adjuster-bolt.
9️: CrMo taper pin for OEM E46 323, 325, 328, & 330 knuckle connection can swap out to a bolt connection through the 5/8"id bearing for use on a variety of aftermarket knuckles.
10: Precision billet aluminum anodized caster mounts with forged rod end.
**The proper tie rod combination for this fixed length FLCA is our extended E46 inner with the upcoming 94mm hex length outer with a taper-pin or M14 bolt depending on your knuckle.
Description
*Note* This product is currently order in from the Parts shop max Taiwan Factory. Roughly takes 1-2 weeks if in stock with Taiwan. You can check stock worldwide on the PSM website https://store.partsshopmax.com/ . If Taiwan is out of stock we can order from USA which may increase the price due to shipping costs from the states
Listing is for:
1x Pair of Lower control arms
New for 2024! E46 billet style front lower arms. 44mm wider than an OEM arm, per side.
Details
1️: Precision ground pin for caster adjuster. Any play there is magnified at the wheel so it’s uncoated. Use rust inhibitor on raw steel.
2️: That pin has a one piece shoulder for anti-shear & anti-separation of weld from the critical area during a crash.
3️: Laser cut steel plate absorbs crash energy well as proven in testing. CNC machined for weight reduction like billet with less cost.
4️: Inboard CrMo taper-pin / joint housing is 1pc. & triangulates the load to the subframe. We provide a rivet-nut & riv-nut tool for E46 crossmembers that lack threads.
5️: Bearings are maintenance free with PTFE liners and are serviceable with our lock ring tool and loctite green bearing mount compound.
6️: The retained all metal locknut lets you drop the arm with one tool.
7️: The included sway bar link has an array of stroke adjustment holes that matches our responsive super angle clearance swaybar.
8️: Billet angle stop structure is tuned with our E36 style knuckle to prevent bump-stop-steer when your suspension moves while at full lock. Spacers with a variety of width are provided to protect against bent threads on the custom domed hex adjuster-bolt.
9️: CrMo taper pin for OEM E46 323, 325, 328, & 330 knuckle connection can swap out to a bolt connection through the 5/8"id bearing for use on a variety of aftermarket knuckles.
10: Precision billet aluminum anodized caster mounts with forged rod end.
**The proper tie rod combination for this fixed length FLCA is our extended E46 inner with the upcoming 94mm hex length outer with a taper-pin or M14 bolt depending on your knuckle.

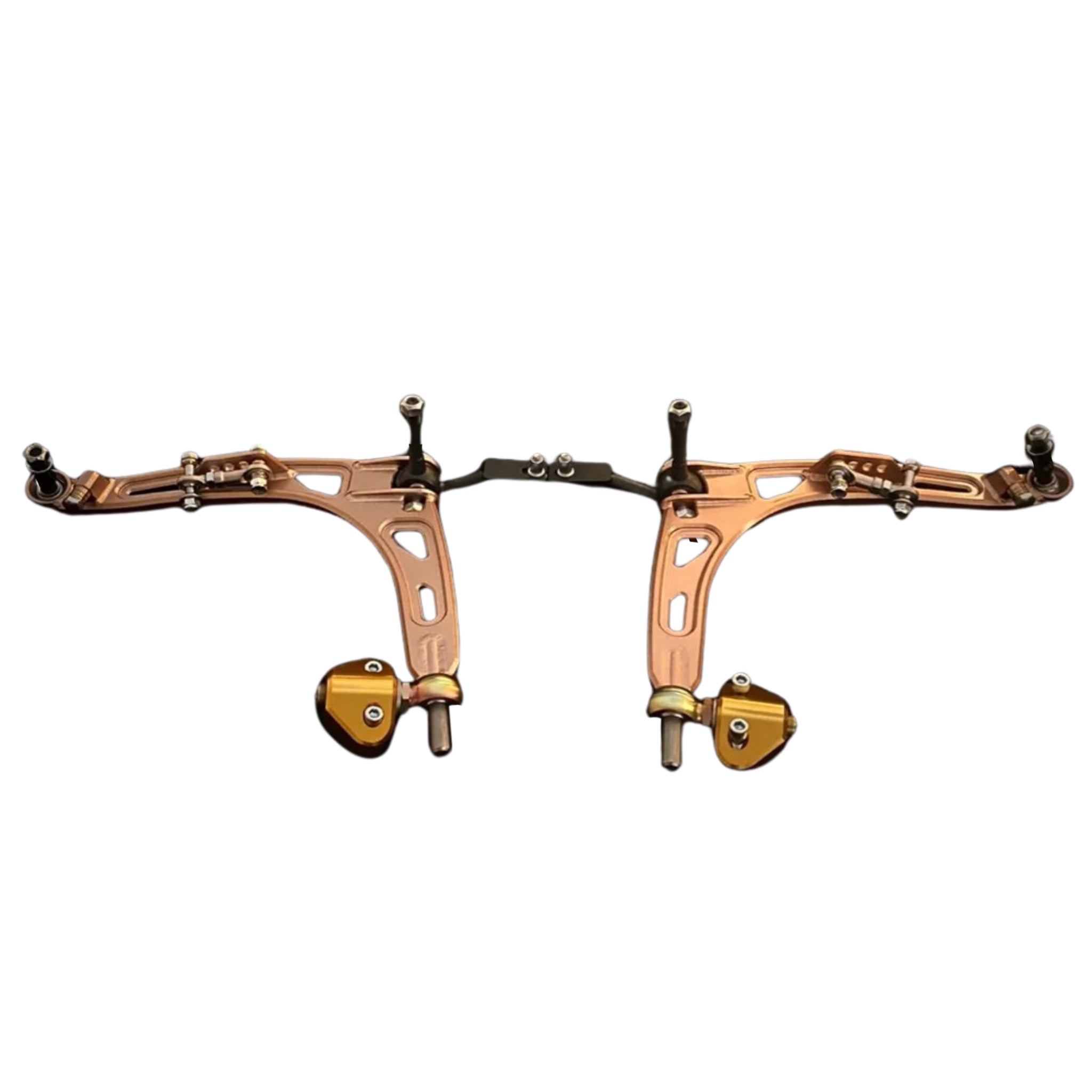

PSM E46 billet style +44mm fixed width front lower arms (Order in)
- Regular price
- $2,496.03
- Sale price
- $2,496.03
- Regular price
-
Tax included.
Shipping calculated at checkout.
New for 2024! E46 billet style front lower arms. 44mm wider than an OEM arm, per side.
New for 2024! E46 billet style front lower arms. 44mm wider than an OEM arm, per side.
Translation missing: en.products.product.sku:SCR PSM E46FLCA
