*Note* This product is currently order in from the Parts shop max Taiwan Factory. Roughly takes 1-2 weeks if in stock with Taiwan. You can check stock worldwide on the PSM website https://store.partsshopmax.com/ . If Taiwan is out of stock we can order from USA which may increase the price due to shipping costs from the states
Listing is for:
1x Pair of knuckles

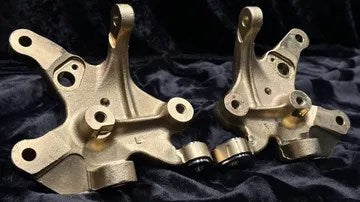

Pair of forged and CNC machined super angle knuckles for the BMW E36 (318, 325, 328, non-M cars).
These knuckles start out as a strong forged steel blank and are then CNC machined for excellent fit and finish and perfect symmetry.
These knuckles are a part of our full angle kit (FLCA, extended tie rods, top camber plates, sold separately) allowing 63 degrees of usable steering angle and optimized geometry.
But these knuckles are also available here separately for use with OEM or modified OEM arms for a moderate increase in angle.
These knuckles quicken the steering ratio to allow more steering angle, and ackerman is adjustable with the included flippable stainless lockouts.
2.5º negative camber is built in without having to stack spacers between the coilover bracket and knuckle.
KPI/SAI is altered to improve steering feel at high angle when you add out lower control arms and coilover top plates.
*** Compatible with E36 base model hubs and brakes. Requires our outer tie rods with M14 bolts to connect to ackerman adjuster lockouts.
Ackerman is adjustable by flipping the lockouts to the outermost setting for more ackerman or the innermost setting for closer to parallel steering.
Additional ackerman adjusters available separately if desired.
