About
*Note* This product is currently order in from the Parts shop max Taiwan Factory. Roughly takes 1-2 weeks if in stock with Taiwan. You can check stock worldwide on the PSM website https://store.partsshopmax.com/ . If Taiwan is out of stock we can order from USA which may increase the price due to shipping costs from the states
Listing is for:

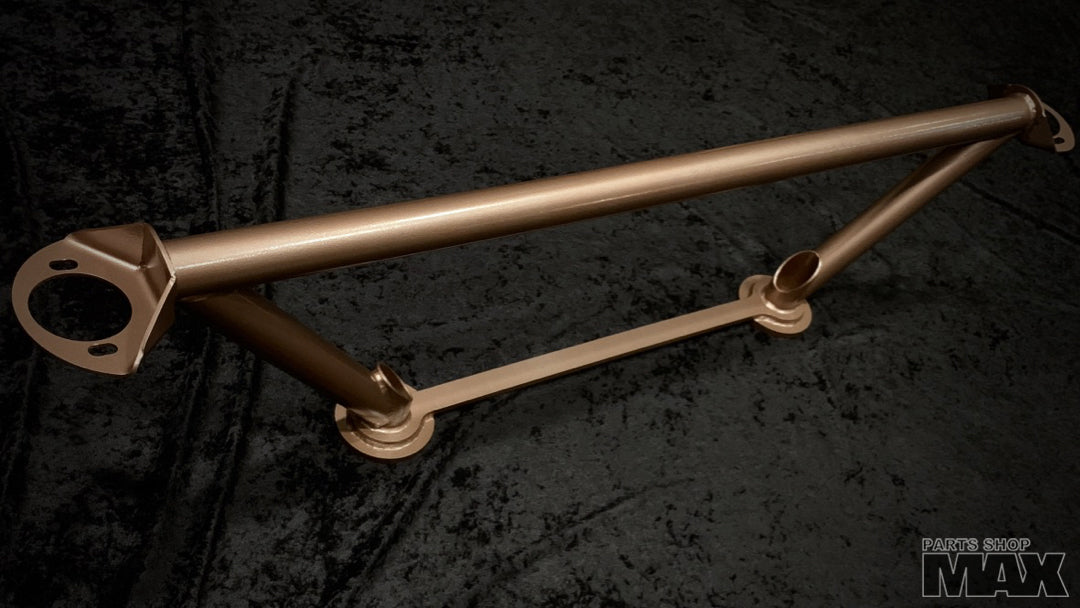

1x Strut Brace with hardware
Formula Drift legal. We 3D scanned several E36 Chassis, to CAD design a brace that accounts for variations in older cars. Accurate laser cut plates and notched tubes are robot welded & powder coated.
~ Tie in your rear strut towers and subframe mounts for increased chassis rigidity
~ Help prevent damage to the strut towers and subframe mounts
~ Perfect pairing for our true coilovers, we?ve made the ultimate rear brace bar that was
~ After drilling the floor panel as shown in the site gallery, and bolting the feet down with included m12p1.5 30L bolts & m12/m14 flat-washers, the bar clamps the floor panel against the same structure inside the chassis that the rear subframe mounts are attached to. Entire installation can be done from the top without subframe removal.
~ Our solid subframe bushings have long hardware included that allows the brace and the solid bushing to be optionally mounted on the same long fastener.
*Note* This product is currently order in from the Parts shop max Taiwan Factory. Roughly takes 1-2 weeks if in stock with Taiwan. You can check stock worldwide on the PSM website https://store.partsshopmax.com/ . If Taiwan is out of stock we can order from USA which may increase the price due to shipping costs from the states
Listing is for:
1x Strut Brace with hardware
Formula Drift legal. We 3D scanned several E36 Chassis, to CAD design a brace that accounts for variations in older cars. Accurate laser cut plates and notched tubes are robot welded & powder coated.
~ Tie in your rear strut towers and subframe mounts for increased chassis rigidity
~ Help prevent damage to the strut towers and subframe mounts
~ Perfect pairing for our true coilovers, we?ve made the ultimate rear brace bar that was
~ After drilling the floor panel as shown in the site gallery, and bolting the feet down with included m12p1.5 30L bolts & m12/m14 flat-washers, the bar clamps the floor panel against the same structure inside the chassis that the rear subframe mounts are attached to. Entire installation can be done from the top without subframe removal.
~ Our solid subframe bushings have long hardware included that allows the brace and the solid bushing to be optionally mounted on the same long fastener.
PSM E36 Rear Strut Tower to Subframe Brace Bar (Order in)
- Regular price
- $664.99
- Sale price
- $664.99
- Regular price
-
Translation missing: en.products.product.sku:SCR PSM E36STSFB
