*Note* This product is currently order in from the Parts shop max Taiwan Factory. Roughly takes 1-2 weeks if in stock with Taiwan. You can check stock worldwide on the PSM website https://store.partsshopmax.com/ . If Taiwan is out of stock we can order from USA which may increase the price due to shipping costs from the states
Listing is for:

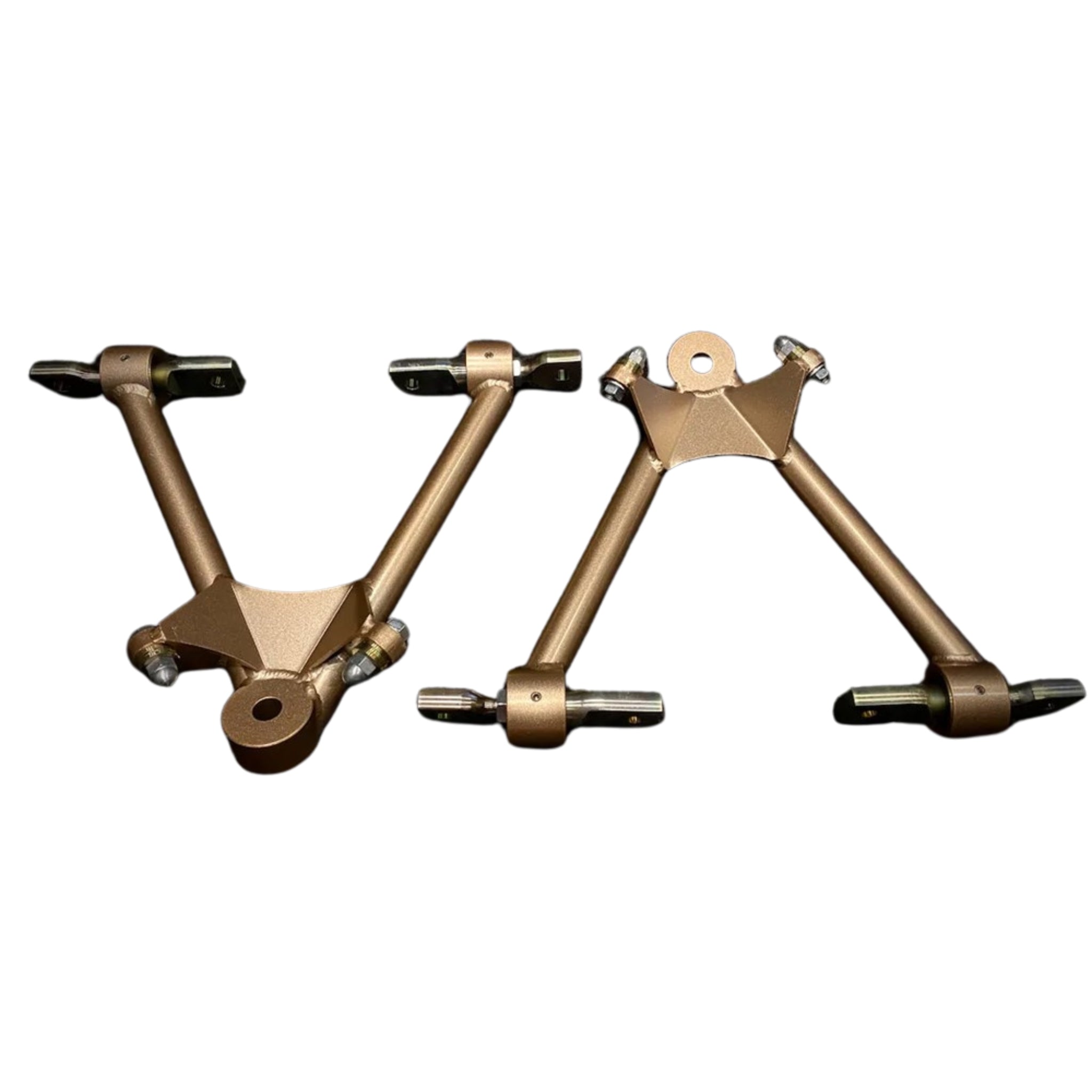

1x Pair of Front upper arms
Pair of front upper control arms extended 1.25" longer than stock C5 and C6 Corvette.
Compatible with C7 when using our Forged Super Angle Knuckles.
These are for use with our extended lower control arms.
Thinner profile than stock arms for more steering angle clearance.
Enough inside clearance for coilovers and for our airbag over damper kit. Adjustable steering angle stops prevent tires from contacting the arms and are specially modeled in CAD to prevent bump stop steering upon contact throughout full suspension travel.
Made of Japanese DOM steel tube, 3.5mm wall. Hand Tig welded and 3 stage copper paint.
PTFE lined maintenance free, low torque spherical bearings. Hardened Chromoly bearing side spacers. Compatible with OEM and aftermarket knuckle ball joint tapers.
**Approx 1.25" longer than stock, so you will need extended lower arms to achieve proper camber.

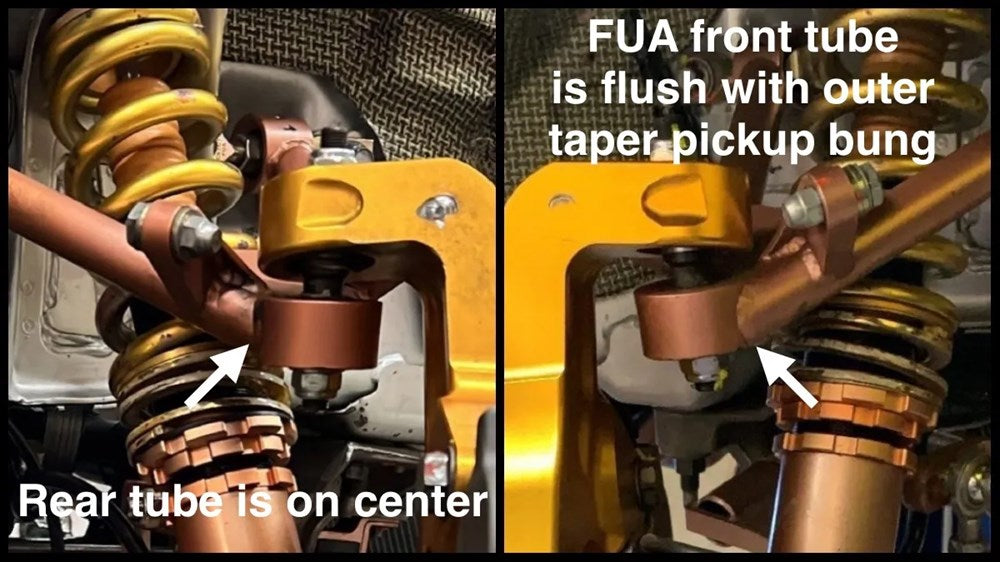

**INSTALL tip - check the gallery photo to identify which side of these arms faces front and rear. They aren't symmetrical.
*Note* This product is currently order in from the Parts shop max Taiwan Factory. Roughly takes 1-2 weeks if in stock with Taiwan. You can check stock worldwide on the PSM website https://store.partsshopmax.com/ . If Taiwan is out of stock we can order from USA which may increase the price due to shipping costs from the states
Listing is for:
1x Pair of Front upper arms
Pair of front upper control arms extended 1.25" longer than stock C5 and C6 Corvette.
Compatible with C7 when using our Forged Super Angle Knuckles.
These are for use with our extended lower control arms.
Thinner profile than stock arms for more steering angle clearance.
Enough inside clearance for coilovers and for our airbag over damper kit. Adjustable steering angle stops prevent tires from contacting the arms and are specially modeled in CAD to prevent bump stop steering upon contact throughout full suspension travel.
Made of Japanese DOM steel tube, 3.5mm wall. Hand Tig welded and 3 stage copper paint.
PTFE lined maintenance free, low torque spherical bearings. Hardened Chromoly bearing side spacers. Compatible with OEM and aftermarket knuckle ball joint tapers.
**Approx 1.25" longer than stock, so you will need extended lower arms to achieve proper camber.
**INSTALL tip - check the gallery photo to identify which side of these arms faces front and rear. They aren't symmetrical.
PSM C5, C6 & C7 Extended Front Upper Arms (Order in)
- Regular price
- $1,301.84
- Sale price
- $1,301.84
- Regular price
-
Translation missing: en.products.product.sku:SCR PSM C6FUA
