Parts Shop Max FD3S RX7 Forged Super Angle Knuckles

Listing is for:

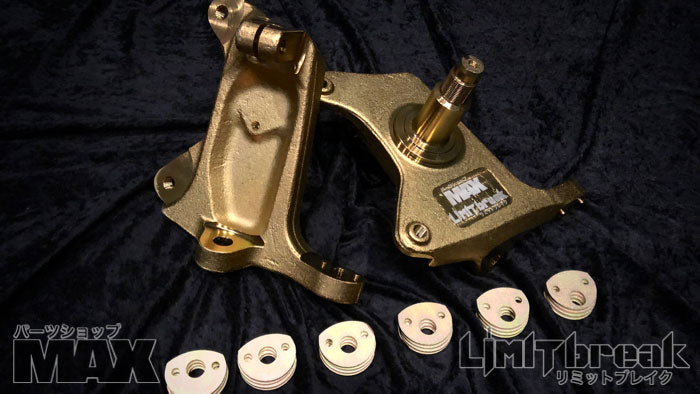

1x Pair of knuckles with ackerman washers

~ Pair of New Forged and CNC machined steel super angle knuckles
~ These are sold separately, but designed for use with our Limit Break control arms and tie rods for a complete professional level steering angle kit
~ Quicker steering ratio gives up to 70 degrees of steering angle when using supporting angle kit parts
~Adjustable ackerman settings using included eccentric plates on tie rod connection.
~25mm roll center correction/drop
~ Increases negative camber and KPI
~ 12mm trailing spindle design allows a lower caster setting while retaining steering self steer.
***INSTALL NOTES: Trailing spindle will move the wheels back, so our adjustable upper and lower arms are required to re-center wheels.
Suggested static caster setting is approx 4.5 degrees. Limit Break outer tie rods are required to connect to the ackerman adjuster plates.
