*NOTE* Currently is an order in product from Nuke In Sweden. Takes Roughly 3-4 weeks to order in

Check out the Nuke website to see what else they offer and more info https://www.nukeperformance.com/

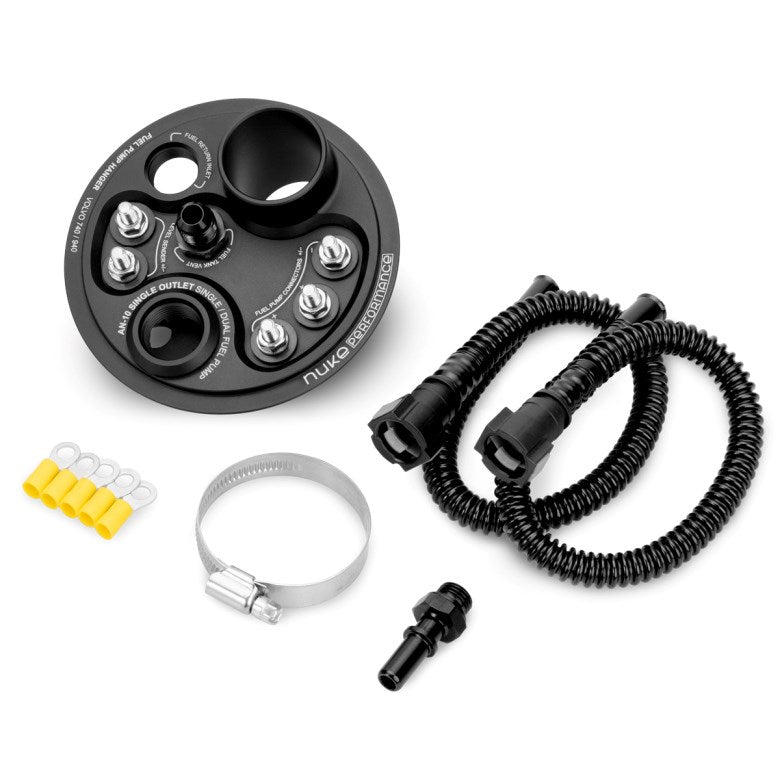

Listing is for:
1 x Fuel pump hanger top lid for Volvo 740 / 940
5 x M6 bolt electrical connectors
1 x AN-6 ORB to AN-6 Male fitting (for vent port)
1 x Viton O-ring 111x3mm (1700-10-002)
1 x 1/4 BSPP to SAE 9.49 Fitting
1 x 1/4 BSPP Plug
1 x 9.49 SAE fuel hose for fuel pump with OD 8mm connector (150-20-307) *
1 x 9.49 SAE fuel hose for fuel pump with OD 10mm connector (150-20-308) *
1 x SAE single ear hose clamp for SAE fuel hose
1 x Stainless steel 44-56mm hose clamp

* Hoses for both 8 mm and 10 mm outlet fuel pumps are included — use the one that fits your pump.

Nuke Performance fuel pump hanger for the classic Volvo 740 and 940. This kit replaces the original fuel pump plate and allows an easy upgrade to a high-flow aftermarket fuel pump.

Precision-machined from high-quality materials and engineered for long-term reliability, this kit provides the perfect foundation for upgrading the fuel system on your Volvo 740 or 940—while fully retaining the OEM fuel level sender.

 Upgrade fuel pump hanger for Volvo 740 / 940
 Fits 1x in-tank high-pressure fuel pump
 Reuses the OEM fuel level sender and fuel filler hose
 Oversized AN-10 ORB outlet port ensuring sufficient fuel
 Approved for use with alcoholic fuels, such as E85

Designed for performance applications where increased fuel flow is required, this hanger provides a modern, service-friendly solution for both street and motorsport use. The OEM fuel level sender clips directly onto the hanger without any modification, ensuring full functionality of the factory fuel gauge.

Fuel Pump Compatibility of the Volvo 740 / 940 Fuel Pump Hanger from Nuke Performance.
The Volvo 740 / 940 Fuel Pump Hanger is delivered with two internal SAE fuel hoses (ID8 and ID10), allowing you to select the hose that best matches your chosen fuel pump. High-quality fuel hoses and connectors ensure reliable operation, even when used with demanding fuels such as ethanol (E85).

 Fuel pump hanger for 1x high-pressure fuel pump
 Enables fuel flow sufficient for 700hp on E85
 Enables fuel flow sufficient for 1000hp on Petrol

The fuel pump hanger is designed to support popular high-pressure aftermarket fuel pumps such as Walbro GST450 and GST520, Deatschwerks DW300 and DW400, Bosch BR540, and many more. With the two included internal fuel hoses, no additional hose kit is required when running a single aftermarket fuel pump setup.

 Can the fuel pump hanger fit two internal fuel pumps?
The fuel pump hanger kit is primarily designed for use with a single aftermarket fuel pump. To support future upgrades or custom dual-pump solutions, the top lid is equipped with an additional 1/4 BSPP port (not used in a single-pump setup) along with an extra electrical connector, allowing a second fuel pump to be added.

A dual in-tank fuel pump configuration requires an additional single fuel pump kit (sold separately) and a custom solution for mounting the second pump to the hanger. For easiest fitment, standard 39 mm fuel pumps such as Deatschwerks DW300 / DW420 or Walbro GSS340 are recommended, as larger-diameter pumps cannot pass through the fuel tank opening in a dual-pump setup. For applications with higher fuel flow demands, we recommend using an external surge tank in combination with the fuel pump hanger, allowing multiple fuel pumps to be mounted externally from the stock fuel tank.

The Volvo 740 and Volvo 940 fuel pump hanger enables easy conversion to AN fuel lines for fuel system upgrades.
The fuel pump hanger is designed for use with aftermarket AN fuel lines and is not compatible with factory fuel lines. The top lid features ORB-threaded ports, offering a wide range of fitting options. The outlet port is an oversized AN-10 ORB, the return port is AN-8 ORB, and the vent port is AN-6 ORB. An AN-6 male fitting is included for the vent port and is intended for use with our upgrade AN-6 fuel tank vent kit (available here). We do not offer or recommend using the fuel pump hanger with OEM fuel lines, as they are too small to handle the increased fuel flow.

OEM fuel level sender integration, ensuring full function of the factory fuel gauge.
The fuel pump hanger integrates the OEM fuel level sender, which clips directly onto the top lid without any modification. Oversized electrical connectors for both the fuel level sender and fuel pump are integrated into the top lid, enabling a clean, straightforward installation with hassle-free wiring.
The OEM fuel level sender is required for the fuel pump hanger kit, as it reuses the factory fuel pump location. The kit also reuses the stock fuel filler hose, making this a truly hassle-free upgrade of the fuel system.

Designed and developed in Sweden, guaranteeing the highest possible finish, functionality, and quality.
Developed and designed in Sweden, in-house by Nuke Performance, the Volvo 740 / 940 Fuel Pump Hanger represents the highest level of quality, sharing the same hallmark as all lightweight motorsport products from Nuke Performance.
All components are co-developed together with motorsport teams worldwide, ensuring that both functionality and design meet the highest possible standards—or set new ones altogether. Order your Volvo 740 / 940 Fuel Pump Hanger today and experience the convenience, safety, and performance of a truly modern fuel pump hanger system.

There is no substitute for the quality of Nuke Performance.

Volvo 740 / 940 Fuel Pump Hanger Specifications:
For more information about specifications, view the product manual.

 * for reference only
 ** for dual fuel pump setup, read product description
 *** not included, needs to be added as accessories
