Description
*NOTE* Currently is an order in product from Nuke In Sweden. Takes Roughly 3-4 weeks to order in
Check out the Nuke website to see what else they offer and more info https://www.nukeperformance.com/
Listing is for:
1 x Machined aluminum Stäubli connection adapter
1 x Viton gasket
5 x MF6S M5x20
CFC Unit Stäubli connector, dual AN-12, adapts your CFC Unit filler neck to work with the Stäubli quick fill options.
This adapter replaces the stock filler neck attachment of the Nuke Performance CFC Units (available here) and gives you a dual setup of AN-12 ports. It is developed to work with the Stäubli quick fill options. The adapter is easily mounted to the CFC Unit top lid with the included hardware and Viton gasket.
Connect dual AN-12 Stäubli connectors to the CFC Units
It replaces the stock filler neck assembly of the CFC Unit
Safe for all types of fuels, including alcoholic fuels
It seals to the used fittings either with the internal AN flange used on Stäubli quick-connect adapters or an ORB O-ring seal if you want to mount AN-12 ORB fittings (available here) to either of the two available ports. The additional port can also be plugged off with an AN-12 ORB Plug (available here) if needed.
How to install the Stäubli connector to the CFC Unit?
The CFC Unit Stäubli connector, dual AN-12, replaces the stock filler neck assembly by removing the five M6 bolts that secure the filler neck to the top lid of the CFC. To access these bolts, remove the CFC unit from the fuel cell and reach them from the underside of the top lid. Position the Stäubli connector with its Viton gasket between the connector and the top lid, and secure it using the five included M6 bolts.
This machined aluminum adapter is sold separately as an accessory and is not delivered with any Nuke Performance CFC Units. No Stäubli connectors is included with the connector, these has to be purchased individually and is not provided by Nuke Performance.

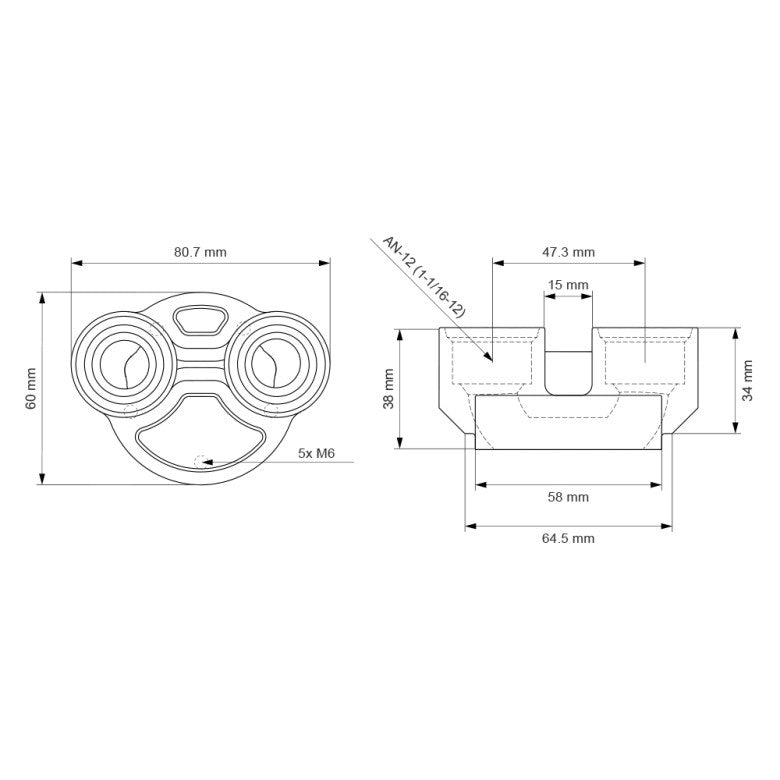

Nuke Performance CFC Unit Stäubli connector, dual AN-12 Specifications:
For more information about specifications, contact us directly.
| Port threads | 2x AN-12 (1-1/16-12 UNF) |
| Works with | Nuke Performance CFC Units |
| Width / Depth | 80.7mm (3.18") / 60mm (2.36") |
| Height over top lid | 34mm (1.34") |
| CTC ports | 47.3mm (1.86") |
| Weight | 143g (5.04oz) |
| For motorsports use | YES |
| Fuel compatibility | Petrol, Gasoline, Ethanol, E85, E100, Methanol |
| Part # | 150-25-001 |
| EAN | 7340209504798 |
Description
*NOTE* Currently is an order in product from Nuke In Sweden. Takes Roughly 3-4 weeks to order in
Check out the Nuke website to see what else they offer and more info https://www.nukeperformance.com/
Listing is for:
1 x Machined aluminum Stäubli connection adapter
1 x Viton gasket
5 x MF6S M5x20
CFC Unit Stäubli connector, dual AN-12, adapts your CFC Unit filler neck to work with the Stäubli quick fill options.
This adapter replaces the stock filler neck attachment of the Nuke Performance CFC Units (available here) and gives you a dual setup of AN-12 ports. It is developed to work with the Stäubli quick fill options. The adapter is easily mounted to the CFC Unit top lid with the included hardware and Viton gasket.
Connect dual AN-12 Stäubli connectors to the CFC Units
It replaces the stock filler neck assembly of the CFC Unit
Safe for all types of fuels, including alcoholic fuels
It seals to the used fittings either with the internal AN flange used on Stäubli quick-connect adapters or an ORB O-ring seal if you want to mount AN-12 ORB fittings (available here) to either of the two available ports. The additional port can also be plugged off with an AN-12 ORB Plug (available here) if needed.
How to install the Stäubli connector to the CFC Unit?
The CFC Unit Stäubli connector, dual AN-12, replaces the stock filler neck assembly by removing the five M6 bolts that secure the filler neck to the top lid of the CFC. To access these bolts, remove the CFC unit from the fuel cell and reach them from the underside of the top lid. Position the Stäubli connector with its Viton gasket between the connector and the top lid, and secure it using the five included M6 bolts.
This machined aluminum adapter is sold separately as an accessory and is not delivered with any Nuke Performance CFC Units. No Stäubli connectors is included with the connector, these has to be purchased individually and is not provided by Nuke Performance.
Nuke Performance CFC Unit Stäubli connector, dual AN-12 Specifications:
For more information about specifications, contact us directly.
| Port threads | 2x AN-12 (1-1/16-12 UNF) |
| Works with | Nuke Performance CFC Units |
| Width / Depth | 80.7mm (3.18") / 60mm (2.36") |
| Height over top lid | 34mm (1.34") |
| CTC ports | 47.3mm (1.86") |
| Weight | 143g (5.04oz) |
| For motorsports use | YES |
| Fuel compatibility | Petrol, Gasoline, Ethanol, E85, E100, Methanol |
| Part # | 150-25-001 |
| EAN | 7340209504798 |
