*NOTE* Currently is an order in product from Nuke In Sweden. Takes Roughly 3-4 weeks to order in
Check out the Nuke website to see what else they offer and more info https://www.nukeperformance.com/
Listing is for:
5 x Bosch Motorsport injector (# 0280158040)
5 x Injector adapter 14mm short - with filter (# 135-01-101)
5 x Injector adapter 14mm short - without filter (# 135-01-102)
5 x Bosch injector clip (# 135-01-005)
1 x Flow match certificate
Flow matched Bosch 980cc injector, high impedance - adapted to 65mm (EV14L) to fit the Nuke Performance range of 5cyl fuel rails.

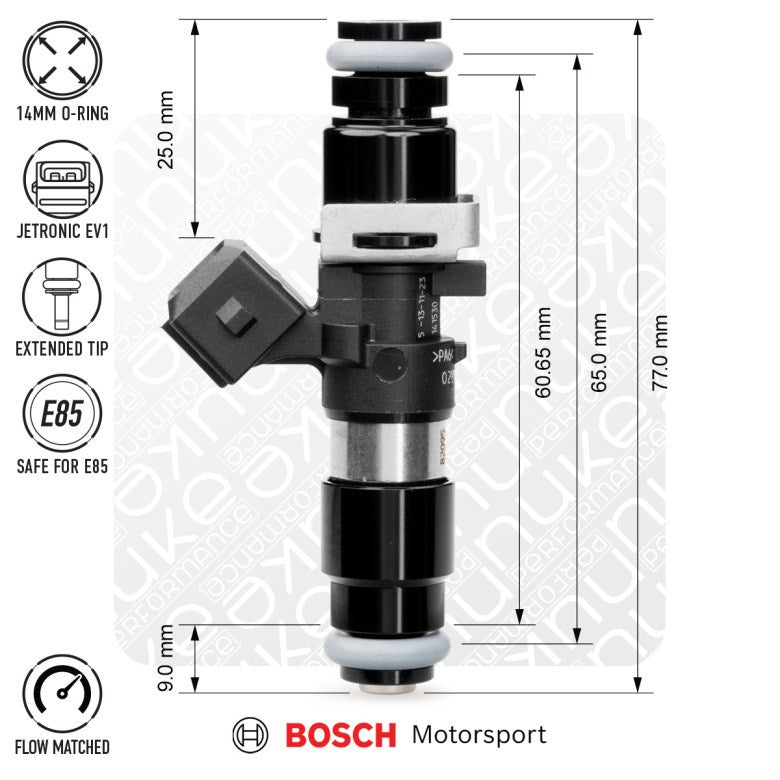

This injector is equipped with the needed accessories according to a Bosch EV14L injector (60,65mm between O-rings / 65mm center to center of the O-rings).
High impedance 980cc injector from Bosch Motorsport
Corresponding to a Bosch EV14 L injector length
Kit of x5 flow matched 980cc injectors
Filtered top adapter for additional protection
When ordering injectors, always check the specifications of your fuel rail to accommodate the accurate injector type. Most Nuke Performance fuel rails use EV14L-sized injectors, available between 630cc to 2200cc.
Bosch Motorsport 980cc Injector specifications :
For guidance on selecting the right injector for your application, please visit our FAQ (available here) for more information.
| Bosch part number | 0280158040 / Bosch -040 |
| OEM part number | 0 280 158 040 |
| Type - w/o included adapters | 39mm EV14K (Compact) |
| Type - with included adapters | 65mm EV14L (Long) |
| Connector | Bosch JPT EV1 Minitimer Jetronic |
| O-ring top / bottom | 14mm Viton / 14mm Viton |
| Resistance | 12 ohm |
| Volume at 3 BAR | 980cc/min = 670g/min = 89lb/hr @ 3bar |
| Fuel compatibility | Petrol / Gasoline / E85 / M100 * |
| Nozzle / Spray pattern | Extended tip / Single cone spray |
| For motorsports use | YES |
| Part # / EAN | 130-05-098 / 7340209508390 |
* Note: If using the injector with methanol, flush it with regular fuel after use. Do not leave methanol in the injector for extended periods.
Bosch 980cc Injector capacity :
Test conditions can differ from real-world use due to equipment and technical factors. However, this info helps understand injector performance and when choosing other fuel system components.
Learn more : Visit our FAQ / Injector calculator
|
Measured peak static flow in a test environment | |
| 2 BAR (29 PSI) | 720cc / min = 69 lb / h |
| 3 BAR (43.5 PSI) | 900cc / min = 86 lb / h |
| 4 BAR (58 PSI) | 1038cc / min = 99 lb / h |
| 5 BAR (78.5 PSI) | 1170cc / min = 111 lb / h |
| 6 BAR (88 PSI) | 1284cc / min = 122 Ib / h |
| 7 BAR (101.5 PSI) | 1344cc / min = 128 lb / h |
| Petrol (10% margin) | Turbo charged | Naturally aspirated |
| 1 cyl | 1x129 = 129hp | 1x168 = 168hp |
| 4 cyl | 4x129 = 516hp | 4x168 = 672hp |
| 5 cyl | 5x129 = 645hp | 5x168 = 840hp |
| 6 cyl | 6x129 = 774hp | 6x168 = 1008hp |
| 8 cyl | 8x129 = 1032hp | 8x168 = 1344hp |
| E85 (10% margin) | Turbo charged | Naturally aspirated |
| 1 cyl | 1x112 = 112hp | 1x140 = 140hp |
| 4 cyl | 4x112 = 448hp | 4x140 = 560hp |
| 5 cyl | 5x112 = 560hp | 5x140 = 700hp |
| 6 cyl | 6x112 = 672hp | 6x140 = 840hp |
| 8 cyl | 8x112 = 896hp | 8x140 = 1120hp |
Injector calculation : The figures listed above are based on a base pressure of 3 BAR (43.5 PSI) at idle, providing a quick overview of this injector's performance. For more details on selecting the best injector for your engine, visit our FAQ and use our Injector Calculator (available here).
Optional flow-matching for optimized performance and consistent fuel delivery for high-performance applications.
We offer all of our injectors as flow-matched in kits of 4, 5, 6, and 8 pcs (available here). Flow-matched injectors ensure consistent fuel delivery, optimizing performance, efficiency, and smoothness. Out-of-the-box injectors may vary in flow, leading to uneven fuel distribution and reduced performance. We recommend flow-matched injectors for all high-performance or tuned engines, where precise fuel delivery is critical. We deliver most injectors within a 1% difference, with a top difference of 2% for smaller batch injectors.
Bosch Motorsport : Bosch Motorsport injectors provide high precision, reliability, and durability, engineered for optimal performance in demanding applications. Known for consistent fuel delivery, they are ideal for racing and performance tuning, especially when paired with Nuke Performance's range of fuel system components.
