*NOTE* Currently is an order in product from Nuke In Sweden. Takes Roughly 3-4 weeks to order in

Check out the Nuke website to see what else they offer and more info https://www.nukeperformance.com/

Listing is for:
1 x LightCell fuel cell 25 liter / 35 liter / 45 liter / 55 liter
1 x Nuke Performance CFC Unit *
2 x 1/4" BSPP to Male barb 8mm hose fittings
2 x 39mm inserts for high-pressure fuel pump bracket
2 x Viton gasket for 24 bolt pattern fuel cells (safe for alcoholic fuels)
1 x Low profile filler cap (remote fill neck available as accessory)
1 x Dual billet fuel pump bracket and adjustable pickup pump mount
1 x AN-8 (3/4 UNF) to AN-6 Male vent safety valve
1 x FLS spacer, used for fuel level senders with a not symmetrical bolt pattern
24 x 1/4-28 UNF x 1 bolts with nylon washers

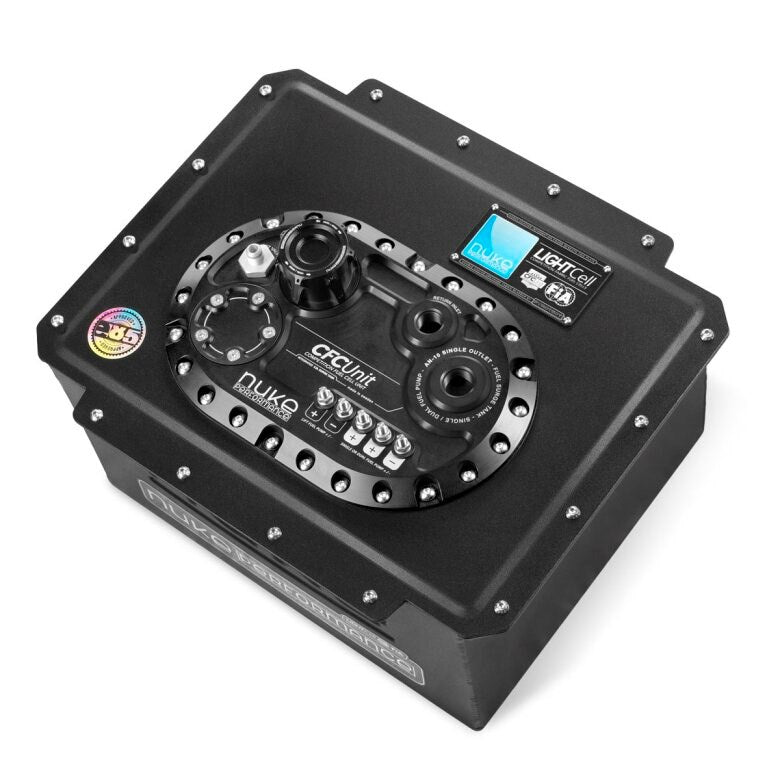

Nuke Performance LightCell - engineered for racing excellence. The Nuke Performance LightCell fuel cells are FIA/FT3-approved, meeting the standards of all major racing and motorsport associations.

Crafted for peak performance, these ultra-lightweight fuel cells feature a double-coated urethane fabric bladder with a 5-year bladder warranty, ensuring unmatched durability and reliability. Each LightCell is equipped with the Nuke Performance CFC Unit, delivering the ultimate efficiency and lightweight design. Trusted by motorsport teams worldwide, the LightCell is compatible with all alcoholic fuels, including E85, making it the safest and most efficient choice for professional racing.

 FIA Approved for all types of motorsports
 Safe for all types of fuels, including alcoholic fuels
 Double Coated Urethane fabric bladder
 Available in 25, 35, 45, 55 liter sizes, for your every need
 Integrated 2.0 liter Fuel Surge Tank functionality
 Fits a single or dual high-pressure fuel pump
 Oversized single AN-10 outlet

The Nuke Performance LightCell fuel cell sets a new standard in racing fuel systems, combining top-tier performance with cutting-edge innovation. Crafted from ultra-durable double-coated urethane fabric and equipped with advanced internal foam baffling, it ensures optimal safety and performance under the most demanding conditions. This revolutionary design features the integrated Nuke Performance CFC Unit, eliminating the need for an external surge tank, and making it the perfect solution for high-performance fuel-injected systems.

Engineered for versatility, the LightCell is compatible with all fuel types, including ethanol and methanol, making it the ultimate choice for professional motorsports and high-performance enthusiasts.

Revolutionize your fuel system with the Nuke Performance LightCell: Compact, lightweight, safe, and equipped with the integrated CFC Unit.
The Nuke Performance LightCell fuel cell uses the Nuke Performance CFC Unit, delivering a streamlined, high-performance fuel system where safety is paramount. This innovative design features an integrated surge tank, eliminating the need for bulky external surge tanks.

All essential parts of a fuel cell fuel system in one single unit

With all necessary fuel pumps mounted directly within the fuel cell, it consolidates your setup into a single, efficient unit. By reducing the number of fuel lines and fittings and removing the need for external pumps, the LightCell saves space and weight and enhances safety, making it the ultimate choice for professional racing and high-performance applications.

How do you choose and use fuel pumps for the Nuke Performance LightCell fuel cell?
The LightCell fuel cells from Nuke Performance support 200 to 2000+ HP for street, track, and drag racing. Its integrated fuel pump hangers ensure compatibility with single or dual high-pressure fuel pumps from top brands like Deatschwerks, Walbro, Bosch, Fuelab and Aeromotive.

Fuel pump installation and configuration:

 Supply pump/lift pump installation:
A fuel pump is securely mounted inside the fuel cell and attached to a height-adjustable aluminum mounting pipe. This lift pump continuously supplies the integrated surge tank with fuel, ensuring it remains adequately filled to prevent fuel starvation for the high-pressure fuel pumps.

 High-pressure/feeder pump installation:
One or two additional high-pressure fuel pumps are securely mounted inside the integrated surge tank using a billet aluminum bracket. These pumps merge into a single oversized outlet, guaranteeing a consistent and reliable fuel supply even under high-demand conditions.

The LightCell fuel cell, paired with the CFC Unit, eliminates the risk of fuel starvation even in extreme driving conditions. Thanks to the internal foam baffling and innovative surge tank design, fuel delivery remains consistent and reliable no matter the situation. With the additional fuel pump mounting kits offered by Nuke Performance, it has never been easier to set up a high-performance, long-lasting, and easy-to-maintain fuel system for your motorsports build.

A wide range of fittings and connectors are available, making it easy to set up your high-performance fuel system for a motorsports application.
The Nuke Performance CFC Unit simplifies high-performance fuel system setups with various fittings and connectors designed for motorsports applications. Featuring a single AN-10 ORB outlet and an AN-8 ORB return, the CFC Unit is compatible with a wide range of aftermarket fuel system components.

A single oversized outlet equals fewer hoses and less mess

The oversized AN-10 ORB outlet combines the internal fuel pumps into a single high-flow fuel line, reducing the need for additional external components. The AN-8 ORB return port efficiently directs fuel back into the surge tank, ensuring it remains consistently full. We offer fittings in both straight AN-to-AN versions and space-saving Full Flow Banjo fittings, ideal for tight installations, and available for both supply and return ports.

Choose between a wide range of Nuke Performance LightCell fuel cell accessories, such as vent kits, remote fill solutions, fuel lines, filters, and much more.
Nuke Performance offers everything from the cell to the engine, and we have everything you need for your fuel cell, such as vent kits, level senders, mounting kits, remote fill options, and much more. Do not miss out on selecting the right parts for your system when placing your order.

Revolutionary Safety and Durability with Nuke Performance LightCell Fuel Cells.
The Nuke Performance LightCell fuel cell combines safety, durability, and efficiency, making it the ultimate choice for high-performance fuel systems. Featuring a foam-baffled, double-coated urethane fabric bladder with a 5-year bladder warranty and a lightweight, powder-coated aluminum container, it offers superior impact absorption without cracking or puncturing.

 Double-coated urethane fabric bladder, safest on the market
 Five-year bladder warranty, and five-year FIA homologation
 Lightweight powder-coated aluminum container

The LightCell fuel cells fit seamlessly into your setup, and when paired with the Nuke Performance CFC Unit, all you need between your fuel cell and engine is an inline filter - just like a stock fuel system, but with performance-level efficiency. The E85-compatible bladder is safe for all fuel types, ensuring reliability in every race. Pro-tip: For long-term storage with alcoholic fuels, rinse with non-alcoholic fuel to maintain peak conditions.

Find the perfect size for your build and experience the next level of fuel system performance with Nuke Performance.
The Nuke Performance Lightcell is designed to meet the needs of a wide range of motorsports applications, offering optimal fuel capacity without compromise. Available in 25, 35, 45, and 55-liter versions (7, 9, 12, and 15 gallons), the Lightcell series makes it easy to select the perfect fuel cell for your setup, whether you're building a lightweight time attack car or a professional drift car.

 Available in multiple sizes for maximum versatility

With FIA-homologated construction and premium materials, the Lightcell fuel cell ensures reliability, safety, and maximum performance on the track. By tailoring the fuel cell to optimal size to your specific needs and getting an optimized, safe, and effective fuel system for all types of motorsports.

Designed and developed in Sweden, guaranteeing the highest possible precision, quality, and performance.
Developed and designed in-house in Sweden by Nuke Performance, the LightCell fuel cell lineup represents the pinnacle of quality and craftsmanship in safe, reliable, and lightweight motorsports fuel systems. Co-developed with global motorsports teams, the LightCell fuel cell meets the highest standards and sets new benchmarks for performance and reliability.

There is no substitute for the quality and performance of Nuke Performance.

LightCell Fuel Cell with Nuke Performance CFC Unit Specifications:
