Listing is for:
1 x 100-micron Stainless steel filter element
2 x Viton O-ring

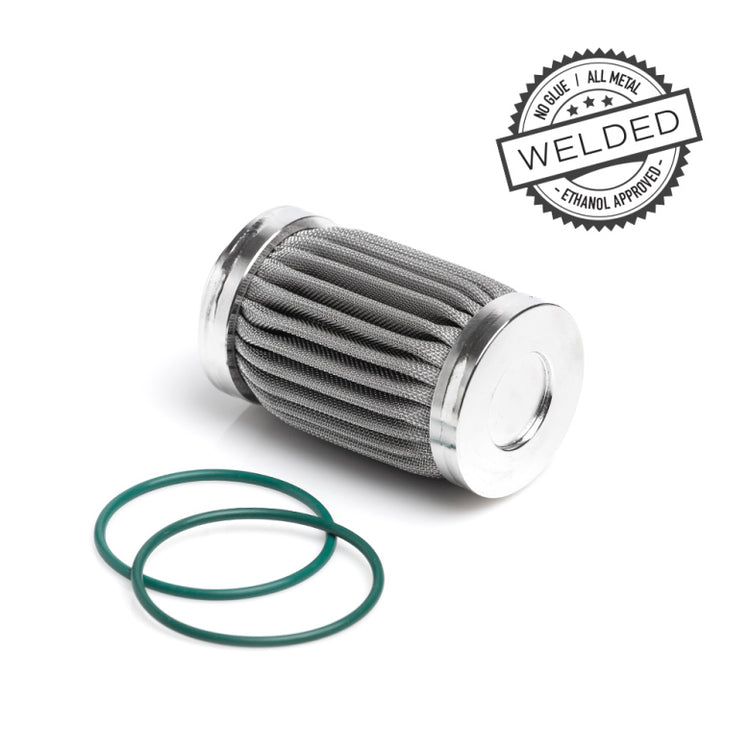

Replacement 100-micron welded stainless steel Fuel Filter element insert for Nuke Performance fuel filters.
This stainless steel filter element is safe for all types of fuels, including alcoholic fuels such as E85, and is used together with the available "short" fuel filters from Nuke Performance (see matching part numbers in the description).
Over 60 sq. inches of filtering area
Welded stainless steel insert
Safe for all types of fuels, including alcoholic fuels
Works with Nuke Fuel Filter and Fuel Filter Slim
Delivered with 2x replacement Viton O-rings
Two replacement Viton O-rings are included with the filter element, the O-rings should always be changed when replacing your filter element to ensure a proper seal, make sure to use some lubrication on the threads before attaching the filter end cap to the filter body when reassembling the filter.
We recommend that the filter insert be replaced or cleaned (only stainless elements) at least once per season to maintain maximum function.
When running ethanol, methanol, or other alcoholic fuels, you should always go with our stainless steel filter elements as these have a long life and trouble-free functionality. We strongly recommend cleaning the internal filter element once a season, and if you use the cellulose filter elements you should change this every month to prevent it to dissolve when being used.
Alcoholic fuels = stainless steel insert. Petrol / Gasoline = cellulose or stainless steel insert. Diesel = cellulose or stainless steel insert.
10 Micron Filter Element - Stainless steel Specifications :
For more information about specifications, contact us directly.
| Filter / Micron | Stainless steel / 100 micron |
| Fuel compatibility | Gasoline, Petrol, Ethanol, Methanol, Diesel |
| Length | 75mm (2.95") |
| Diameter | 42mm (1.65”) |
| Weight | 164g (0.36lb) |
| Filter area | 60 sq. in |
| Work pressure / Max pressure | 8 BAR (116 PSI) / 21 BAR (305 PSI) |
| Flow capacity | 750 LPH |
| Pressure drop | ≈0.15 BAR (≈2.17 PSI) |
| Part # | 200-10-102 |
| EAN | 7340209500585 |
