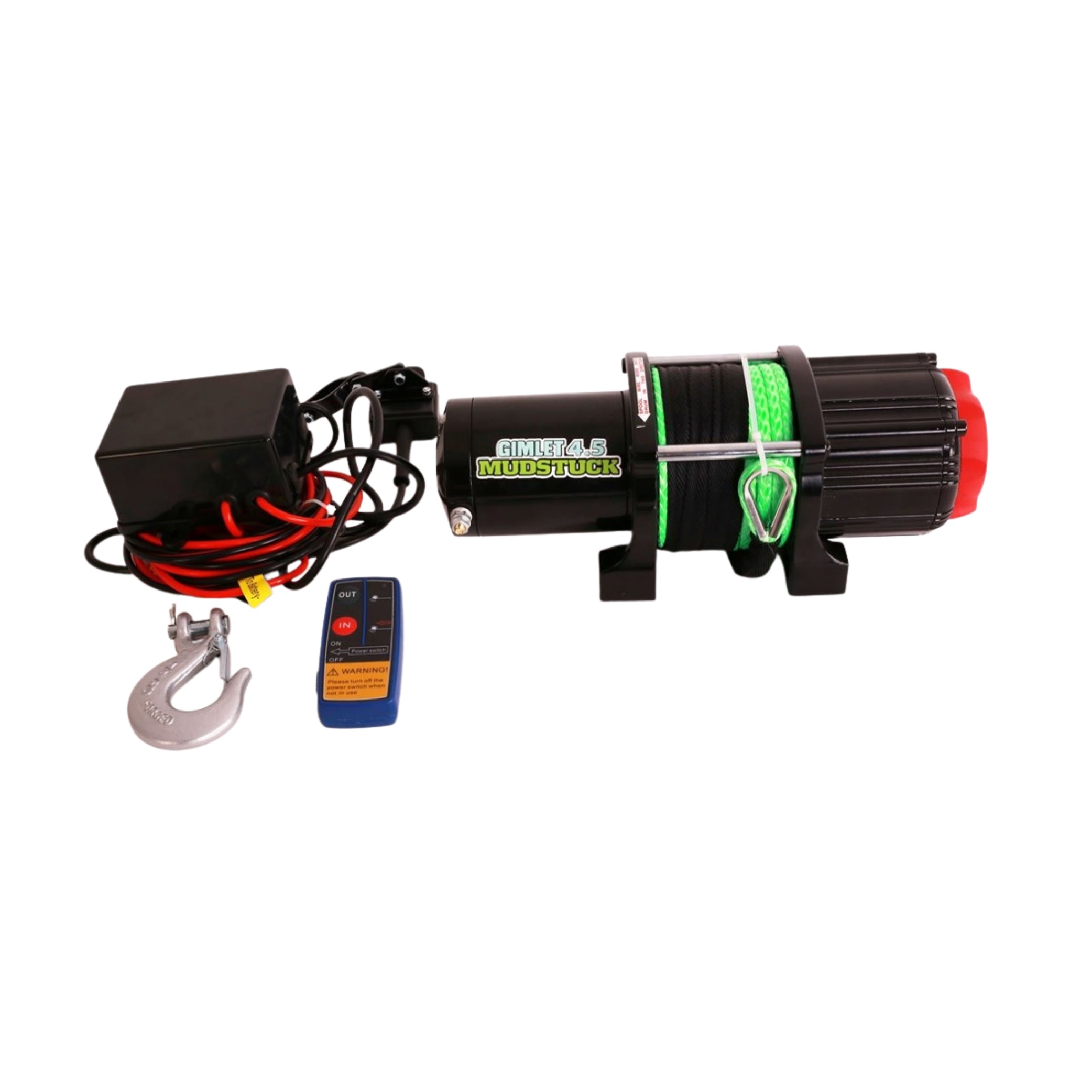

Mudstuck 4500lb Winch – Compact Power for Lighter Rigs

Small size. Big impact.

The Mudstuck 4500lb winch is perfect for boat trailers, ATVs, quad bikes, and lighter recovery tasks. Built tough and tested right here in New Zealand by Green Motorsports, this winch was designed to handle serious use — even in compact applications.

Whether you're hauling your quad out of the bush or winching a vehicle onto a trailer, this is a versatile, lightweight solution that still packs a punch.

Ideal for:

• ATVs, UTVs, and quad bikes

• Boat trailers and smaller car trailers

• Light 4WDs and side-by-sides

• General utility and recreational use

Key Features:

• IP67 rated – sealed against dust and water

• Compact but powerful 12V motor

• Turn clutch for quick operation

• NZ-tested and proven in real conditions

• Comes with Dyneema rope and both remote types

Technical Specs:

• Rated pull: 4,500lbs / 2,041kg (single line)

• Motor: 12V permanent magnet, 2.2hp

• Gearbox: NGWN planetary gear, 166:1 reduction

• Drum size: 51mm x 75mm

• Battery leads: 1.5m

• Rope: 13m of 5.5mm Dyneema (rated to 2,447kg)

• Line speed: 4.5m/min

• Amp draw under load: 238A

• Winch weight: 11.5kg

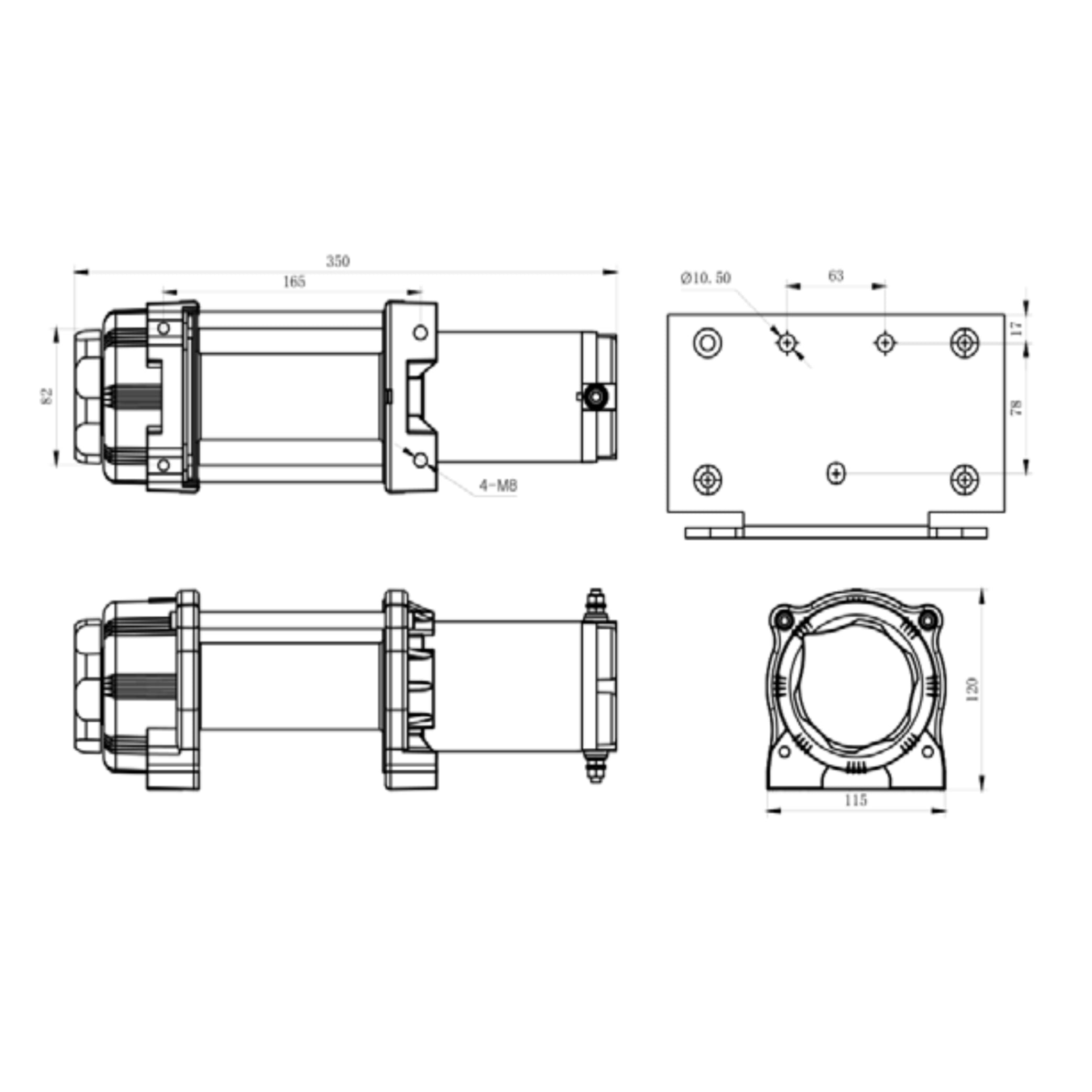

• Mounting measurements: 165mm x 82mm

• Overall dimensions: 327mm x 128mm x 122mm

In the Box:

• Mudstuck 4500lb Winch

• Fairlead

• Wired Remote

• Wireless Remote

• Dyneema Rope (13m)

NOTE: Our winches come fitted with Dyneema rope, which requires the hawse fairlead shown in the photos — not the roller fairlead pictured on some manuals. Rollers are designed for steel cables.
