Description
NOTE: This item is specially ordered from GKTECH Australia and usually takes around 3-4 weeks to arrive.
Listing is for:
1x Pair of V2 Adjustable Rear lower control arms
1x Pair of V2 S/R/Z32 chassis Rear knuckles with all new kinematics
1x Pair of V4 - S/R/Z32 Rear Camber Arms (RUCA's)
1x Pair of V4 - S/R/Z32 Adjustable Rear traction rods
1x Pair of V4 - S13/180sx/R32/A31/Z32 Rear toe arms
The GKTECH rear suspension package is designed for those that are looking for a combo as opposed to piecing a kit together one by one
REAR LCAS
Newly designed, low weight (2.8kg) V2 GKTECH Rear Adjustable Lower Control Arms are good for adjusting track width, wheel fitment, and most importantly eliminate passive rear wheel steering/compliance steering. The Lower control arms offer +15/â€"15mm perpendicular to the centreline of the chassis.
REAR KNUCKLES

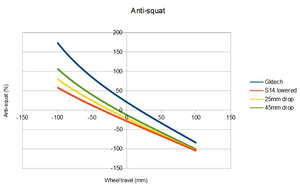

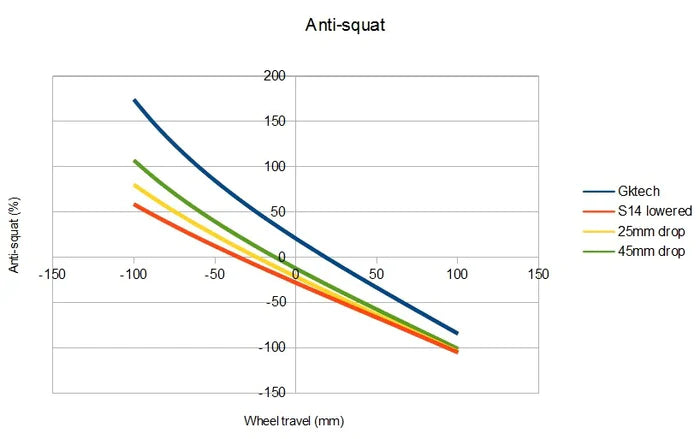

Feature dual calliper brackets as standard, allowing to fit factory Nissan 2 pot callipers either side, in addition to the factory Z32/Skyline drum handbrake. Clearance for GTR driveshaft’s, high quality PTFE lined spherical bearings throughout and have all new kinematics to drastically improve anti-squat, bump steer, camber gain curves and raised roll centre height.
REAR CAMBER ARMS
When you lower your car negative camber is introduced. This reduces the contact patch of your tyres and thus available traction. These camber arms allow for approximately -5/+7 degrees of camber adjustment.
REAR TOE ARMS
When you lower your car the rear toe is largely effected. This effects rear toe adjustment, and can cause the car to crabwalk, be unpredictable, unsafe and cause rapid tyre wear. Having adjustable rear toe arms will correct this issue.
Choice in rear toe arms is subframe specific, eg if you car is running an S13 subframe select S13 toe arms. If your car is running an S14 subframe then select S14 toe arms.
REAR TRACTION RODS
Rear traction rods allow adjustment forward or backward of the rear knuckle assembly. They can be adjusted to eliminate bump steer, anti-squat and alter other rear suspension traction settings to improve suspension response.
Want more technical information, product benefits and a look into the design process of these products? Follow these links:
GKTECH Rear suspension uprights V2 Adjustable rear lower control arms
Suits:
NISSAN
R32 SKYLINE GTS-T
S13 CA18 180SX
S13 CA18 SILVIA
S13 SR20 180SX
S13 SR20 SILVIA
Z32 300ZX
Description
NOTE: This item is specially ordered from GKTECH Australia and usually takes around 3-4 weeks to arrive.
Listing is for:
1x Pair of V2 Adjustable Rear lower control arms
1x Pair of V2 S/R/Z32 chassis Rear knuckles with all new kinematics
1x Pair of V4 - S/R/Z32 Rear Camber Arms (RUCA's)
1x Pair of V4 - S/R/Z32 Adjustable Rear traction rods
1x Pair of V4 - S13/180sx/R32/A31/Z32 Rear toe arms
The GKTECH rear suspension package is designed for those that are looking for a combo as opposed to piecing a kit together one by one
REAR LCAS
Newly designed, low weight (2.8kg) V2 GKTECH Rear Adjustable Lower Control Arms are good for adjusting track width, wheel fitment, and most importantly eliminate passive rear wheel steering/compliance steering. The Lower control arms offer +15/â€"15mm perpendicular to the centreline of the chassis.
REAR KNUCKLES
Feature dual calliper brackets as standard, allowing to fit factory Nissan 2 pot callipers either side, in addition to the factory Z32/Skyline drum handbrake. Clearance for GTR driveshaft’s, high quality PTFE lined spherical bearings throughout and have all new kinematics to drastically improve anti-squat, bump steer, camber gain curves and raised roll centre height.
REAR CAMBER ARMS
When you lower your car negative camber is introduced. This reduces the contact patch of your tyres and thus available traction. These camber arms allow for approximately -5/+7 degrees of camber adjustment.
REAR TOE ARMS
When you lower your car the rear toe is largely effected. This effects rear toe adjustment, and can cause the car to crabwalk, be unpredictable, unsafe and cause rapid tyre wear. Having adjustable rear toe arms will correct this issue.
Choice in rear toe arms is subframe specific, eg if you car is running an S13 subframe select S13 toe arms. If your car is running an S14 subframe then select S14 toe arms.
REAR TRACTION RODS
Rear traction rods allow adjustment forward or backward of the rear knuckle assembly. They can be adjusted to eliminate bump steer, anti-squat and alter other rear suspension traction settings to improve suspension response.
Want more technical information, product benefits and a look into the design process of these products? Follow these links:
GKTECH Rear suspension uprights V2 Adjustable rear lower control arms
Suits:
NISSAN
R32 SKYLINE GTS-T
S13 CA18 180SX
S13 CA18 SILVIA
S13 SR20 180SX
S13 SR20 SILVIA
Z32 300ZX
GKTECH S/R CHASSIS REAR SUSPENSION PACKAGE S13/180SX/R32/A31/Z32 (Order in)
- Regular price
- $3,959.99
- Sale price
- $3,959.99
- Regular price
-
Tax included.
Shipping calculated at checkout.
Translation missing: en.products.product.sku:SCR GKT0232
Couldn't load pickup availability
Order in
