Listing is for:

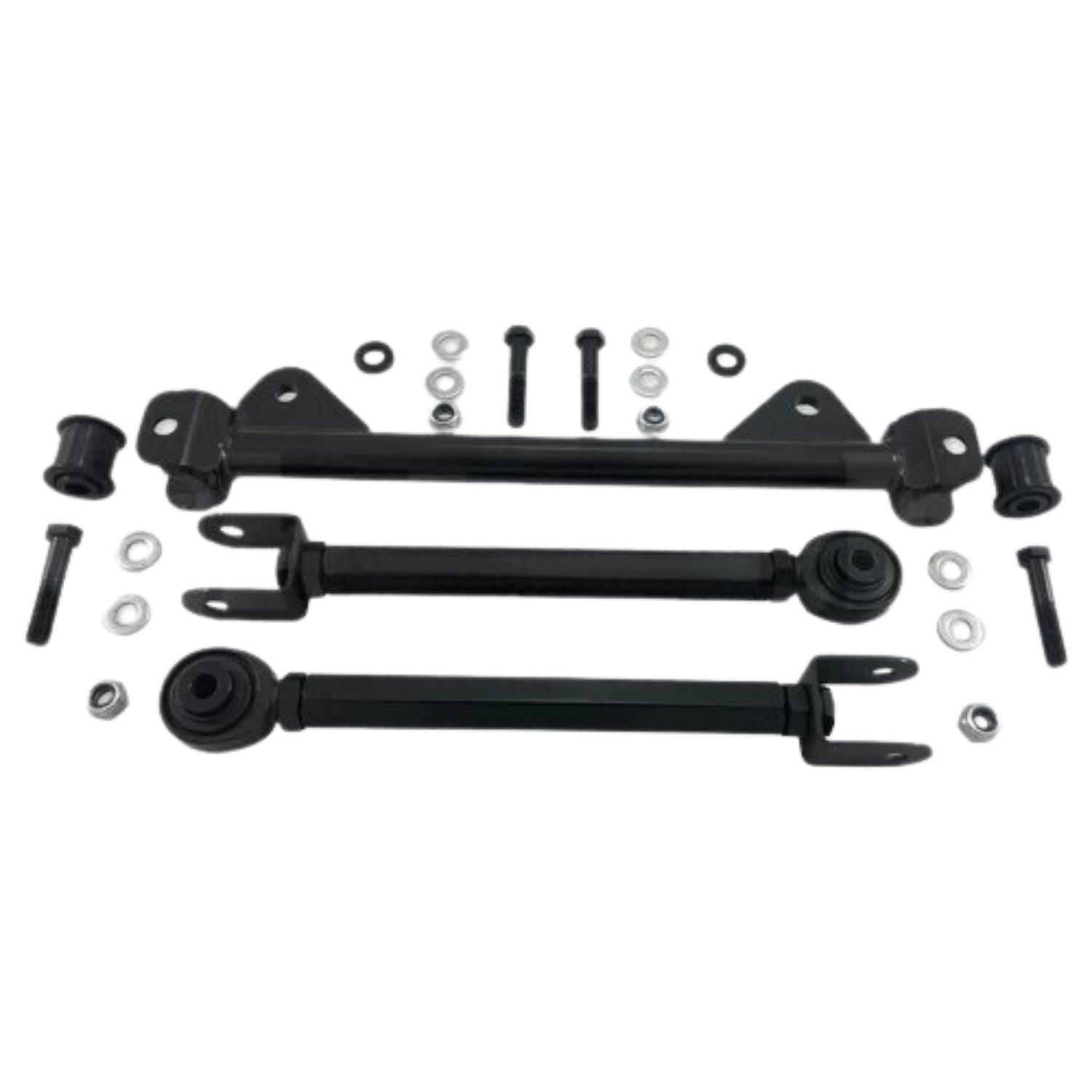

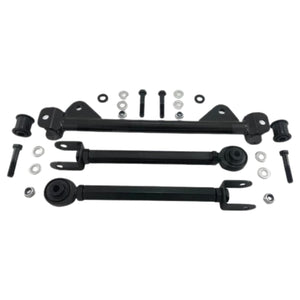

1x S14/S15/R33/R34 HICAS delete bar with toe arm mounts
1x Bent toe arms

The GKTech V3 chromoly rear HICAS delete bar with toe arm mounts replaces your stock HICAS steering unit and we are now offering a combo option.

This combo gives you the ability to adjust and tune your vehicle's rear toe. The lengths on these rear toe arms are fully adjustable to your specs when doing an alignment and with the right adjustments, straight line and cornering of your vehicle will be improved.

Essential for Motorsport or as an option to fix the broken expensive OE Nissan part.

This combo does have some options which include;

Straight toe arms or bent (high clearance) toe arms?
The straight toe arms are made from 7075 Aluminium as is best suited for a car that is not super low as the S/R chassis rear subframe mounting stud can make contact with the toe arms on lowered cars and also hexagonal shape all the way through for ease of adjustment.

The bent (high clearance) toe arms are made from Chromoly steel and offer a 20degree bend to suit people with low to super low cars as they offer clearance for the S/R chassis rear subframe mounting stud, which is critical on lowered cars.

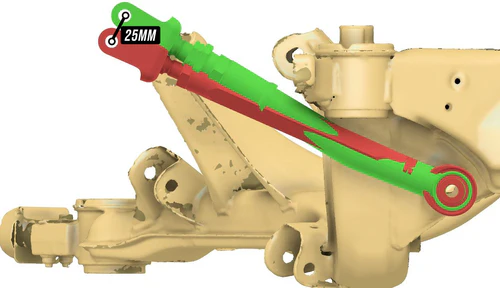

Check out the comparison, in the product photos above showing a 25mm clearance difference!

Note - The Gktech hicas lock bar only requires the S13/R32 toe arms which are 40mm wide, hence why that is the only toe arm listed, this means it will still work on any chassis you are fitted the kit to in general.

Components in photo that are sold separately:
- Polyurethane S/R/Z Chassis Rear Knuckle Bushes (pair)
- 30mm outside diameter spherical bearings (PAIR)
- 30.5mm outside diameter spherical bearings (PAIR)

Suits:
NISSAN
R33 SKYLINE GTR
R33 SKYLINE GTS-T
R34 SKYLINE GT-T
S14 200SX/SILVIA
S15 200SX/SILVIA
