About
*NOTE* Currently is an order in product from GKTECH In Australia. Takes roughly 3-4 weeks
Listing is for:
1x Pair of Strut tops
At GKTECH we now offer three different variants of our offset strut tops!
All of them are designed and made similar, sharing the following;
- CNC machined
- Lightweight 6061-T6 billet aluminium
- Direct bolt on replacement for all struts with 2.36'' spacing (90%+ of coil overs)
Offset strut tops allow for additional adjustment at the top of the strut and allow you to further adjust camber and castor, at the top as opposed to through the lower control arm at the bottom.
Depending on your budget, build quality and levels of adjustment needed we have tailored the options to suit all setups, which are ?

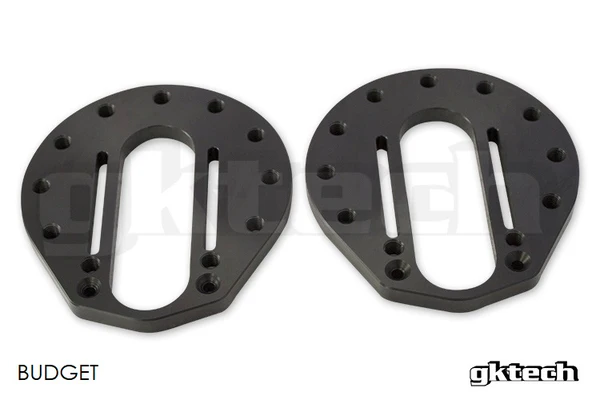

Budget Strut tops
These are named the "budget" version due to the strut top needing to be cut if you wanted to be able to use the additional range of adjustment available.
This is good for someone who just needs the adjustment and is happy to cut the strut tops.
The budget strut tops are 12mm thick and will space the coilover down this much.
These also include the required studs and nuts.
NOTE: Unfortunately, these DO NOT fit HSD or Tein Super Drift coilovers.
We suggest checking the dimensions in the product photos to confirm fitment.
NOTE#2: The S13, 180SX and A31 Cefiro these can be used if you space the plate down 8mm.
If you were not so keen on cutting your strut tops, this brings us to our V2 offset strut tops, which do NOT require cutting ...
V2 Offset strut tops
These V2 offset strut tops are the good all-rounder strut top, they offer a good range of adjustment and do NOT require you to cut your strut top.
These are a two piece design and are 22mm thick and will space the coilover down this much.
NOTE: Unfortunately, these DO NOT fit HSD or Tein Super Drift coilovers.
We suggest checking the dimensions in the product photos to confirm fitment.
NOTE #2: In some cases, the dampener adjusters that are on top do not allow full range of adjustment. This depends on your dampener, you could either cut a hole for the dampener or remove it.
This brings us to the be all end all of strut top adjustment ...
V3 Premium offset strut tops
These are the bee?s knees, the ant?s pants, the ducks nuts of adjustment!
The premium version does NOT require you to cut your strut tops and also introduces the ability to adjust caster independently of camber.
The premium offset strut tops are 31mm thick and will space the coilover down this much.
This version also can be used with basically all aftermarket strut tops, so it ticks all the boxes.
These also include the required bolts, washers and nuts.
NOTE: If you need additional camber adjustment it is recommended to extend the FLCAs as the camber adjustment available is +15mm to +53mm over OEM.
All the above strut tops are designed to be fitted to the following vehicles.
Suits:
NISSAN
S13 CA18 180SX
S13 CA18 SILVIA
S13 SR20 180SX
S13 SR20 SILVIA
S14 200SX/SILVIA
S15 200SX/SILVIA
*NOTE* Currently is an order in product from GKTECH In Australia. Takes roughly 3-4 weeks
Listing is for:
1x Pair of Strut tops
At GKTECH we now offer three different variants of our offset strut tops!
All of them are designed and made similar, sharing the following;
- CNC machined
- Lightweight 6061-T6 billet aluminium
- Direct bolt on replacement for all struts with 2.36'' spacing (90%+ of coil overs)
Offset strut tops allow for additional adjustment at the top of the strut and allow you to further adjust camber and castor, at the top as opposed to through the lower control arm at the bottom.
Depending on your budget, build quality and levels of adjustment needed we have tailored the options to suit all setups, which are ?
Budget Strut tops
These are named the "budget" version due to the strut top needing to be cut if you wanted to be able to use the additional range of adjustment available.
This is good for someone who just needs the adjustment and is happy to cut the strut tops.
The budget strut tops are 12mm thick and will space the coilover down this much.
These also include the required studs and nuts.
NOTE: Unfortunately, these DO NOT fit HSD or Tein Super Drift coilovers.
We suggest checking the dimensions in the product photos to confirm fitment.
NOTE#2: The S13, 180SX and A31 Cefiro these can be used if you space the plate down 8mm.
If you were not so keen on cutting your strut tops, this brings us to our V2 offset strut tops, which do NOT require cutting ...
V2 Offset strut tops
These V2 offset strut tops are the good all-rounder strut top, they offer a good range of adjustment and do NOT require you to cut your strut top.
These are a two piece design and are 22mm thick and will space the coilover down this much.
NOTE: Unfortunately, these DO NOT fit HSD or Tein Super Drift coilovers.
We suggest checking the dimensions in the product photos to confirm fitment.
NOTE #2: In some cases, the dampener adjusters that are on top do not allow full range of adjustment. This depends on your dampener, you could either cut a hole for the dampener or remove it.
This brings us to the be all end all of strut top adjustment ...
V3 Premium offset strut tops
These are the bee?s knees, the ant?s pants, the ducks nuts of adjustment!
The premium version does NOT require you to cut your strut tops and also introduces the ability to adjust caster independently of camber.
The premium offset strut tops are 31mm thick and will space the coilover down this much.
This version also can be used with basically all aftermarket strut tops, so it ticks all the boxes.
These also include the required bolts, washers and nuts.
NOTE: If you need additional camber adjustment it is recommended to extend the FLCAs as the camber adjustment available is +15mm to +53mm over OEM.
All the above strut tops are designed to be fitted to the following vehicles.
Suits:
NISSAN
S13 CA18 180SX
S13 CA18 SILVIA
S13 SR20 180SX
S13 SR20 SILVIA
S14 200SX/SILVIA
S15 200SX/SILVIA

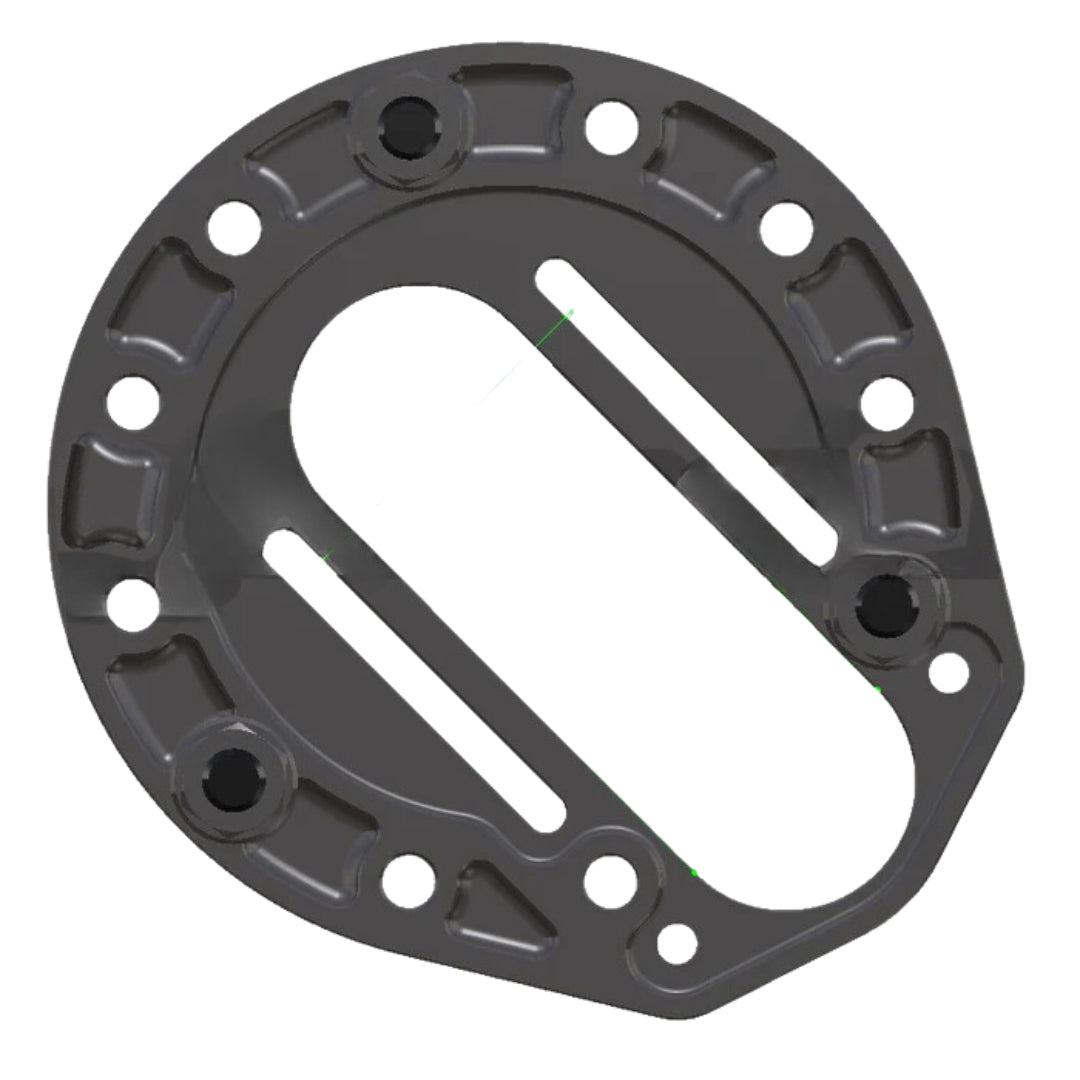

GKTECH BUDGET S-CHASSIS OFFSET CAMBER STRUT TOPS (Order in)
- Regular price
- $274.99
- Sale price
- $274.99
- Regular price
-
Translation missing: en.products.product.sku:SCR GKT0137
