Listing is for:
1x Pair of Lower control arms

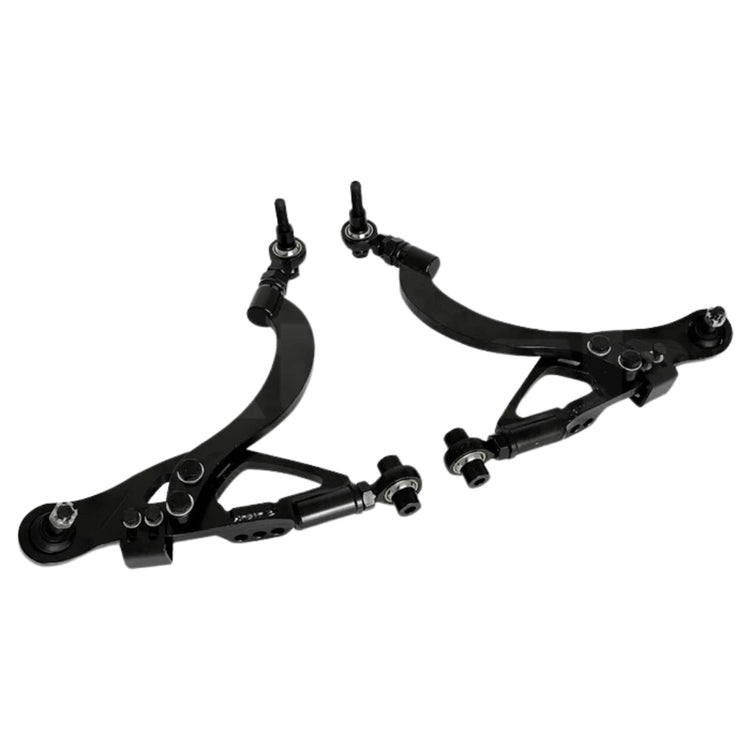

The GKTECH Super Lock front lower control arms simplify, improve and replace the front lower control arm and caster rods on the 86 / GR86 or BRZ, while also supporting around 65+ degrees of steering lock.
These arms are designed based off CMM data, they are CAD designed, FEA tested, have CNC machined ends and the main body is laser cut and bent from 4130 Chromoly Steel.
Adjustable, with 2 different length options; OEM length and adjust out to +30mm from OEM or; +40mm through to +70mm over OEM length.
Designed with the OEM knuckle in mind, meaning they will work with our bolt on steering kit which uses the OEM knuckle.
As we do all our arms, common sized PTFE bearings throughout the arm, which can be found locally, however, we do have them on the shelf should you wish to carry spares. We also use our high misalignment rose/ heim joints to allow the arm to rotate freely.
Dust boots to protect the rose/ heim joints are included and have lock stops built into the arm for those that want to dial down the fun.
Finally, the arms are E-coated (electrophoresis coating) for rust prevention.
- Allow for 65+ degrees of steering lock
- Adjustable from OEM length through to +30mm or +40mm through to +70mm
- Designed to be used with OEM knuckle
- Adjustable lockstop
- 3 swaybar mounting positions for adjustment
- On car caster adjustment (6.75 default, max 10.2, min 4)
- High misalignment rose/ heim joints
- CMM measured, CAD designed, FEA tested
- CNC machined ends
- Laser cut 4130 Chromoly steel design
NOTE: OEM end links can not be used with these LCA's. However, our adjustable end links (or possibly other brands) will work with these LCA's should you wish to retain the swaybar.
NOTE: If you are using our older style V1/V2 86 steering kits with these lower control arms that use the straight style tie rod end you will need to replace that with our curved style tie rod end, which can be seen here - https://au.gktech.com/zn6-86-brz-curved-tie-rod-ends
Suits:
SUBARU
BRZ ZC6
BRZ ZD8
TOYOTA
GR86 ZN8
GT86 ZN6
Description
*NOTE* Currently is an order in product from GKTECH In Australia. Takes roughly 3-4 weeks
Listing is for:
1x Pair of Lower control arms
The GKTECH Super Lock front lower control arms simplify, improve and replace the front lower control arm and caster rods on the 86 / GR86 or BRZ, while also supporting around 65+ degrees of steering lock.
These arms are designed based off CMM data, they are CAD designed, FEA tested, have CNC machined ends and the main body is laser cut and bent from 4130 Chromoly Steel.
Adjustable, with 2 different length options; OEM length and adjust out to +30mm from OEM or; +40mm through to +70mm over OEM length.
Designed with the OEM knuckle in mind, meaning they will work with our bolt on steering kit which uses the OEM knuckle.
As we do all our arms, common sized PTFE bearings throughout the arm, which can be found locally, however, we do have them on the shelf should you wish to carry spares. We also use our high misalignment rose/ heim joints to allow the arm to rotate freely.
Dust boots to protect the rose/ heim joints are included and have lock stops built into the arm for those that want to dial down the fun.
Finally, the arms are E-coated (electrophoresis coating) for rust prevention.
- Allow for 65+ degrees of steering lock
- Adjustable from OEM length through to +30mm or +40mm through to +70mm
- Designed to be used with OEM knuckle
- Adjustable lockstop
- 3 swaybar mounting positions for adjustment
- On car caster adjustment (6.75 default, max 10.2, min 4)
- High misalignment rose/ heim joints
- CMM measured, CAD designed, FEA tested
- CNC machined ends
- Laser cut 4130 Chromoly steel design
NOTE: OEM end links can not be used with these LCA's. However, our adjustable end links (or possibly other brands) will work with these LCA's should you wish to retain the swaybar.
NOTE: If you are using our older style V1/V2 86 steering kits with these lower control arms that use the straight style tie rod end you will need to replace that with our curved style tie rod end, which can be seen here - https://au.gktech.com/zn6-86-brz-curved-tie-rod-ends
Suits:
SUBARU
BRZ ZC6
BRZ ZD8
TOYOTA
GR86 ZN8
GT86 ZN6
