*NOTE* This product is not currently stocked in store and is Order in, it will take Roughly 5-7 working days to order in
EWP80 Kit Remote Electric Water Pump (12V) (#8005)
The revolutionary, Australian designed, EWP pump is made from anti-corrosive, lightweight, glass-filled nylon & incorporates a carbon mechanical face seal for added reliability.
The EWP80 Electric Water Pump – simple, do-it-yourself, easy to install, designed to complement or replace your existing belt-driven, mechanical water pump. It will fit most vehicle makes and models fitted with naturally-aspirated or turbo engines up to two litres. The revolutionary, Australian-designed EWP80 is made from anti-corrosive, lightweight, heat-resistant, glass-filled nylon and incorporates a ceramic faced seal for long-life durability.
The EWP80 greatly enhances engine cooling control while giving you added power and improved fuel economy. By removing the parasitic power losses of a belt-driven, mechanical water pump the EWP can provide up to 10kW (13hp) of extra power and increased torque and used extensively in Intercooler applications.

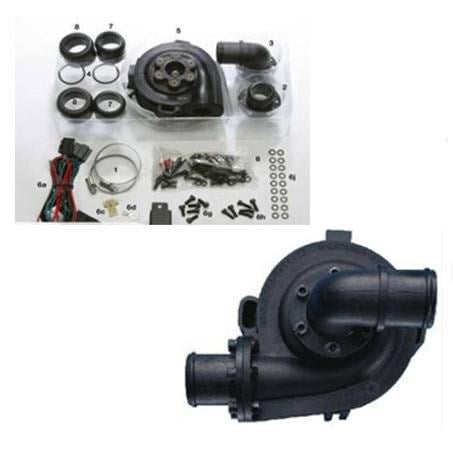

Listings is for:
- EWP80 - Nylon 12V Assembly x1
- Nylon Flange Adapter: 35mm 90 Elbow x1
- Nylon Flange Adapter: 35mm Straight x1
- EWP ADAPTOR O-RING x2
- Adaptor - Rubber Sleeve - 3mm {1/8"} x2
(Increase hose fitting size to 38mm)
*For larger hose size, you will need 6mm sleeves (Part #18511) which will increase adaptor to fit hose size 41~42mm *Sold Seperately
- HOSE CLAMP x2
- EWP BASIC PUMP LOOM x1
- RED - Wire Joiner x1
- RED - 6mm Ring Terminal x1
- RELAY - 12V 40 Amp 5 Pin W/- Resistor Protection x1
- SCREW - SELF TAP 8X3/8 BZ x1
- 5x12 Flanged Hex Set Screw Zinc Silver x6
- 5x16 Flanged Hex Set Screw Zinc Silver x6
- M5 FLANGE NUT ZINC SILVER x6
Technical Specifications:
- Operating voltage: 3V DC to 15V DC
- Maximum current: 7.5A @ 13V
- Flow rate (max): 90 L/min (23.8 US gal/min) @ 13V DC
- Operating temp: -40 to 120C (-40 to 248F)
- Pump design: Clockwise centrifugal with volute chamber
- Pump weight: 900 grams (2.0 lb)
- Pump material: Nylon 66, 30% glass-filled
- Burst pressure: 350 kPa (50 psi)
- Seal: Ceramic face seal
- Self Priming: No, none of our pumps are self-priming
- Fits hose size: 32mm to 51mm
Description
*NOTE* This product is not currently stocked in store and is Order in, it will take Roughly 5-7 working days to order in
EWP80 Kit Remote Electric Water Pump (12V) (#8005)
The revolutionary, Australian designed, EWP pump is made from anti-corrosive, lightweight, glass-filled nylon & incorporates a carbon mechanical face seal for added reliability.
The EWP80 Electric Water Pump – simple, do-it-yourself, easy to install, designed to complement or replace your existing belt-driven, mechanical water pump. It will fit most vehicle makes and models fitted with naturally-aspirated or turbo engines up to two litres. The revolutionary, Australian-designed EWP80 is made from anti-corrosive, lightweight, heat-resistant, glass-filled nylon and incorporates a ceramic faced seal for long-life durability.
The EWP80 greatly enhances engine cooling control while giving you added power and improved fuel economy. By removing the parasitic power losses of a belt-driven, mechanical water pump the EWP can provide up to 10kW (13hp) of extra power and increased torque and used extensively in Intercooler applications.
Listings is for:
- EWP80 - Nylon 12V Assembly x1
- Nylon Flange Adapter: 35mm 90 Elbow x1
- Nylon Flange Adapter: 35mm Straight x1
- EWP ADAPTOR O-RING x2
- Adaptor - Rubber Sleeve - 3mm {1/8"} x2
(Increase hose fitting size to 38mm)
*For larger hose size, you will need 6mm sleeves (Part #18511) which will increase adaptor to fit hose size 41~42mm *Sold Seperately
- HOSE CLAMP x2
- EWP BASIC PUMP LOOM x1
- RED - Wire Joiner x1
- RED - 6mm Ring Terminal x1
- RELAY - 12V 40 Amp 5 Pin W/- Resistor Protection x1
- SCREW - SELF TAP 8X3/8 BZ x1
- 5x12 Flanged Hex Set Screw Zinc Silver x6
- 5x16 Flanged Hex Set Screw Zinc Silver x6
- M5 FLANGE NUT ZINC SILVER x6
Technical Specifications:
- Operating voltage: 3V DC to 15V DC
- Maximum current: 7.5A @ 13V
- Flow rate (max): 90 L/min (23.8 US gal/min) @ 13V DC
- Operating temp: -40 to 120C (-40 to 248F)
- Pump design: Clockwise centrifugal with volute chamber
- Pump weight: 900 grams (2.0 lb)
- Pump material: Nylon 66, 30% glass-filled
- Burst pressure: 350 kPa (50 psi)
- Seal: Ceramic face seal
- Self Priming: No, none of our pumps are self-priming
- Fits hose size: 32mm to 51mm
Davies Craig Electric Water Pump - EWP80 Nylon Kit 12V (Order in)
- Regular price
- $424.99
- Sale price
- $424.99
- Regular price
-
Tax included.
Shipping calculated at checkout.
